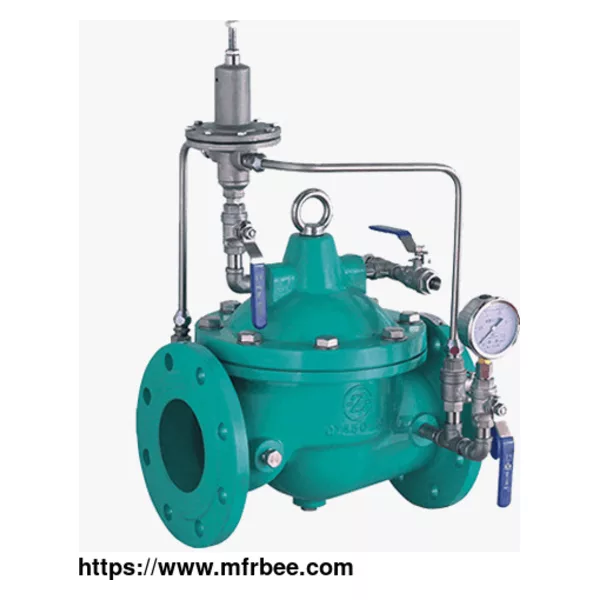

Pressure Relief Valve

FOB Price: USD $3,000.00 / Piece
Place Of Origin: Shanghai

Minimum Order: 1

Packaging: Wooden Crate

Delivery: Within 30 days

Festures of Pressure Relief Valve

Accurate Pressure Control

Fast Opening to Maintain Line Pressure

Slow Closing to Prevents Surges

Completely Automatic Operation

Pressure Relief Valve Working Principle

Inlet pressure water enters the lower cavity of the pilot valve diaphragm from the guide valve when the pressure in the pipeline exceeds the set pressure of the guide valve to make its pressure increase to open the guide valve, the main water valve control room outwards drain under the effect of the inlet pressure water to open the main valve, it starts to discharge pressure. When the pressure in the pipeline drops to the set pressure, the pressure in the lower cavity of the guide valve diaphragm decreases, causing the guide valve closed. This results in increased water pressure from the guide pipe to the pilot valve, then to the main valve control room. The main valve plate closes and begins to hold pressure.

Pressure Relief Valve Installation and Commissioning

The cold water pressure relief valve supports horizontal and vertical installation but should pay attention to the inlet and outlet direction of valve body water when installing. In general, one fire water supply system can only install one pressure relief valve . Within the operating pressure range of the spring specified in the nameplate, the opening pressure can be adjusted by rotating the adjusting screw to change the spring compression amount. For specific use, please consult ZECO valve and gate group.

Pressure Relief Valve Material and Standard

Size Range: 2"~24"

Pressure Rating: 10bar ~ 25bar

Face to Face Dimensions: AMSE B16.10, EN558-1

Flange End Dimension: AMSE B16.1/16.42, AS4087, EN1092-2

Coating: Fusion Bonded Epoxy Coating

Inspection and Test: ISO 5208 / EN 12226-2

As one of pressure relief valve manufacturers, we also have types of pressure relief valve for sale, if you want to buy pressure relief valve, please contact us.

If you want to know more about purpose of pressure relief valve, please visit our website.
