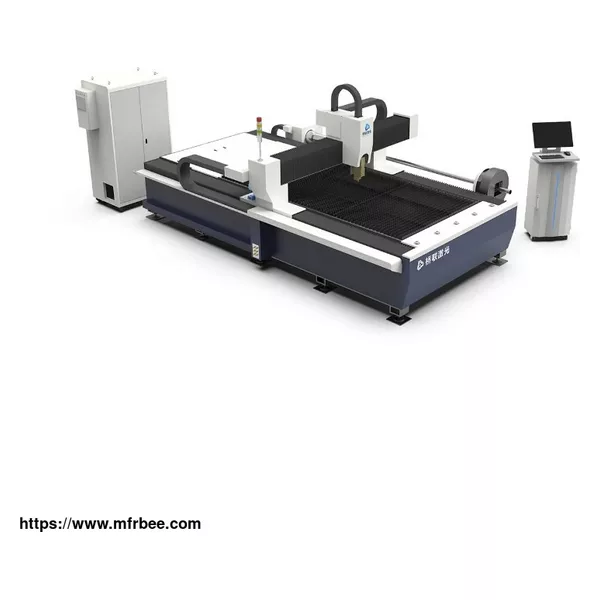

SIDE HANGING PLATE TUBE INTEGRATED MACHINE

Packaging
N/A
Delivery
N/A
https://www.qiaoliangroup.com/Side-Hanging-Plate-Tube-Integrated-Machine.html

luminum beam, High impact resistance performance, Good integrity, rigidity and toughness, more stable.

Fully automatic double pneumatic chuck, more stable

One-button opening, automatic centering, reducing the waiting time for loading and unloading;

Pneumatic open clamp, large and constant clamping force, heavy pipe does not loosen or slip, ensuring cutting accuracy;

Special support frame to avoid the sagging deformation of the pipe, improve the cutting accuracy and prolong the service life of the chuck


Industry Applications

Since sheet and pipe integrated design, Industry adaptability of LF3015CR has been greatly enhanced, including petroleum and pipe material, fitness equipment and other pipe material mainly mechanical processing, automotive manufacturing, machine cabinet and other board materials mainly mechanical processing, etc.

Specially used for cutting 0.5-5mm carbon steel sheets (pipes), 0.5-2.5mm stainless steel sheets, galvanized steel(pipes), electrolytic zinc-coated steel sheet(pipes), silicon steel(pipes) and other kinds of thin metal sheets and pipes. Range of pipe diameters: 20-220mm.


Cutting Size (mm) 3000x1500/4000x2000/6000x2000
Tube Diameter (mm) 120/160/220
Tube length (mm) 3000/6000
Positional Accuracy (mm) ±0.05
Repeated Positional Accuracy (mm) ±0.01
Pepid Positioning (mm/min) 70
Acceleration (G) 1
The Max. number of revolutions of the chuck (RPM) 80-120
The Laser Power (W) 1000-6000
