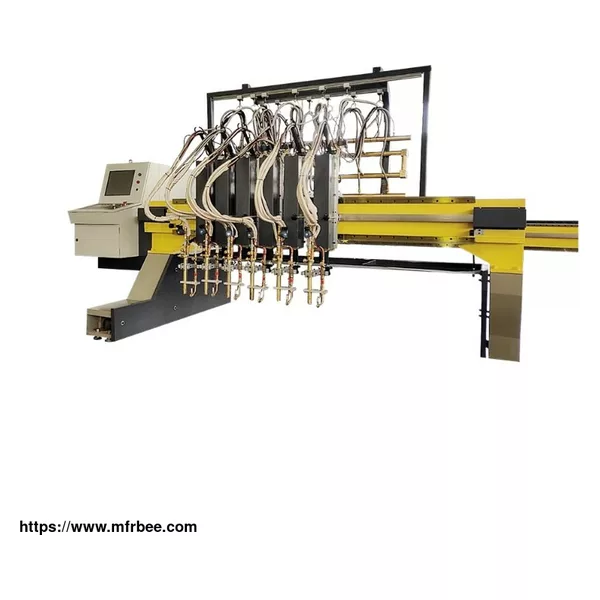

CNC BILATERAL FLAME CUTTING MACHINE
- Packaging
- N/A
- Delivery
- N/A
Specifications
Product features:
1.The machine adopts the structure ofgantry type and the crossbeam of netframe style.
2.After precision machining of thesurface, the crossbeam has good rigidityand high precision and excellent heatdissipation.
3.The product is suitable for equipmentwith any kinds of CNC systems.
4.According to user's requirement,assemble CNC flame single torch orlinear triple cutting torch.
Main technical parameter:
| No. | Item | Unit | Parameter |
| 1 | Track span | mm | 3000-9000 (Less than 4000 using single driver) |
| 2 | Track length | mm | According to customers' requirement |
| 3 | Transverse effective cutting | mm | 800 shorter than track span |
| 4 | Longitudinal effective cutting | mm | 3000 shorter than track length |
| 5 | Longitudinal rails | m | 2m/rail(It may be increased or reduced in accordance witn users' requirements) |
| 6 | No of torches | Set | According to customers' requirement |
| 7 | Cutting speed | mm/min | 0 ~ 6000 |
| 8 | Traveling speed | mm/min | 0 ~ 12000 |
| 9 | Torch lifting range | mm | 200 |
