DC Micro Blowers

DC Micro Blowers

WHEE DC micro blowers has a compact structure, precise operation, small volume, large air output, good balance and small noise. A blower mini dc helps designers to meet the space requirements of portable devices.

Find WHEE, a Micro blower manufacturer with a special design of miniature blowers from China.

DC Micro Blowers Functions

FG: FG Signal

RD: RD Signal

PWM: PWM Signal

VC: Voltage Control

TC: Temperature Control

DC Micro Blowers Specifications

BEARING TYPE F.D. Bearing /One ball /Sleeve bearing/ Two ball

FRAME P B T. UL94V-0

IMPELLER P B T. UL94V-0

P C B UL94V-0

MATERIAL LIST RoHS Compliant

OPERATING TEMPERATURE -10 ℃ ~ + 70 ℃

STORAGE TEMPERATURE -40 ℃ ~ + 70 ℃

DIELETRIC STRENGTH Applied a 500VAC for 1.0 minute or 600VAC for 2 seconds between housing and both lead wires.

INSULATION RESISTANCE At least 10 MΩ at 500VDC between internal stator and both lead wires.

LIFE EXPECTANCY 30,000(S)/40,000(F)/50,000 hrs(2B) in running conditions at 40℃ ambient.

DC Micro Blowers List

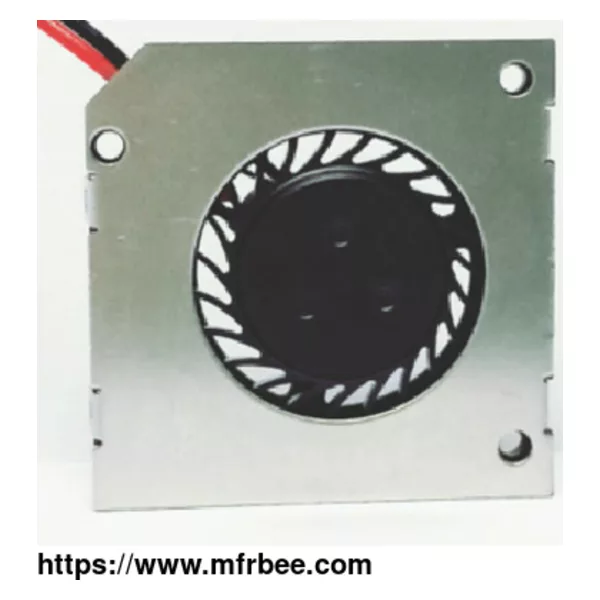

30*30*04 DC Micro Blowers

As one of electric fan company, we have types of dc cooling fans for sale, anything you need, please leave us a message.
