Horizontal Crystallizer
HVD-HCR-V horizontal agitated batch vacuum crystallizer is a piece of cooling crystallisation equipment. The source medium of crystallization is operated under atmospheric pressure. The
crystallization temperature is determined by the process and the crystallization process is discontinuous. Its crystallizer machine control has outstanding characteristics are simple structure,
energy-saving, and comfortable operation.
The meaning of crystallization is a horizontal closed cylinder structure, with packing sealing device and reduction gear installed on both end covers. The tank wall has a cooling water interlayer.
The hollow shaft is arranged in the center of the tank to fix the cooling coil and agitating spiral belt. Both ends of the shaft heads on crystallizer machine have the function of cooling water
circulation.
Application of Horizontal equipment used in crystallization
Crystallization of liquid glucose.
Crystallization of glutamic acid, xylose, and xylitol.
Crystallization of tartaric acid and malic acid.
Crystallization of salts in the chemical industry.
Crystallization of sodium gluconate, calcium carbonate.
Features of Horizontal Crystallizer Machine
Customized design of crystallization machine to meet the needs of various customers.
The transmission device has a compact structure, stable operation, high efficiency, and low noise.
Reliable mechanical seal, shortstop time.
The small gap between the spiral belt and the barrel body, uniform stirring, not blocked.
Crystallizer machine has advanced circulating water cooling system with good cooling effect and high crystallization effect.
Stainless steel inner cylinder, corrosion resistance, long service life.
Cooling Type Vertical Continuous Crystallizer Machine

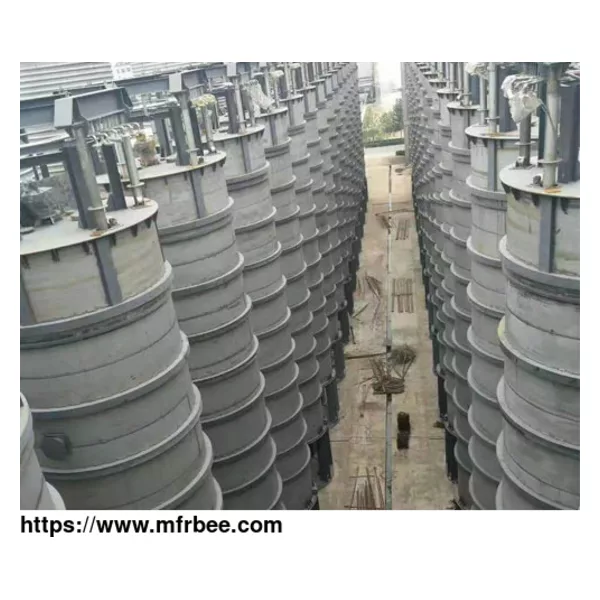

HVD-VCR-V vertical continuous crystallizer machine is used to crystallize solids from the supersaturated solution by liquid crystallization. The solution is entered through the feed pipe at the top
of the crystallizer. Through the cooling module in vertical and the cooling module in series to form a pre-designed temp. the gradient to cool the material. After the crystallized material reaches
the bottom of the crystallizer machine, it reaches a certain temp. and particle size, and then it is discharged through the outlet with an insulation jacket at the bottom of the equipment into the
next process for processing.
The seed needed for the crystallization process is supplied from the seed tank.
Application of Cooling Type Vertical Continuous Crystallizer Machine
Crystallization of liquid glucose.
Crystallization of fructose, mannitol, and maltitol.
Crystallization of glutamic acid, xylose, and xylitol.
Crystallization of tartaric acid and malic acid.
Crystallization of salts in the chemical industry.
Crystallization of sodium gluconate, calcium carbonate.
Features of Cooling Type Vertical Continuous Crystallizer Machine
Continuous and large-scale equipment for crystallisation.
Automatic control to ensure stable product quality.
This type of crystallizer machine used for crystallisation can save floor space.
Simple and convenient operation of equipment for crystallisation.
Crystallizer Technical Parameter
Horizontal Crystallizer Technical Parameters
Model HVD-HCR-V25 HVD-HCR-V30 HVD-HCR-V36 HVD-HCR-V40 HVD-HCR-V45
Volume (m3) 25 30 36 40 45
Working pres. (Mpa) ≤0.16
Feed DS % 70%~75%
Power (kw) 3 4 5.5 5.5 7.5
Rotary speed (r/min) 0.5~0.8 0.5~0.8 0.5~0.8 0.5~0.8 0.5~0.8
Overall dimension (mm) 5880×2980×3545 6680×2980×3545 7165×3250×3833 6305×3833×4045 6805×3600×4045
Weight (kg) 13500 15200 18232 171000 18420
Cooling Type Vertical Continuous Crystallizer Technical Parameters
Model HVD-VCR-V110 HVD-VCR-V178
Volume (m3) 128 178
Material loading volume (m3) 110 160
Effective cooling area (m2) 250 380
Material SS304 SS304
Cooling modules qty. 11 (10 groups coil + head jacket) 12 (11 groups coil + head jacket)
Cooling control circuit 5+1 (jacket) 5+1 (jacket)
Reducer power (kW) 1.5 / 2.2 1.5 / 4
Power of hydraulic station (kW) 15 22
Total height around (m) 21 21.8
Barrel body (mm) Φ3300×8 Φ3800×8
