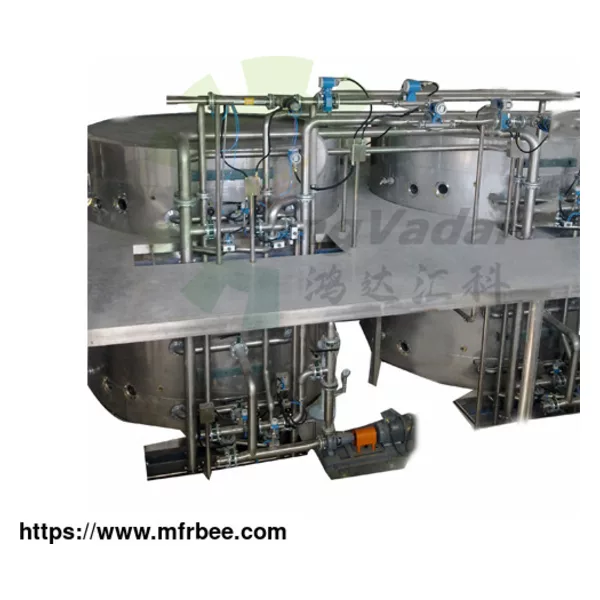

HVD-CHRO-Q series continuous chromatography system, also known as the chromatography data system, is the use of the mixture in the flow through the chromatography separation resin (separation
agent), due to the different adsorption capacity of components of chromatography for mixture and separation agent to separate.
Features of Chromatography System
High purity column chromatography equipment.
High production yield and high performance chromatography.
The internal continuous single use chromatography system adopts multi-dimensional design and multi-dimensional monitoring to ensure the best separation effect.
Low water consumption and low energy consumption.
Automatic intelligent control with low labor cost.
Special and professional distributor design, uniform distribution, low pressure, to avoid a large number of resin broken.
Application of Chromatography System
Chromatography data systems is widely applied to crystalline fructose, fructose-oligos, F55 fructose syrup, inulin, DMH mother liquid, maltitol, xylose, arabinose, xylooligosaccharide,
isomaltooligosaccharide, trehalose, tags, saccharification liquid, organic acids, amino acid, etc. The chromatography data system in pharmacy also has a large chromatography systems market.
HongVadar relies on professional design, strict production management, the fine processing procedure, provides high efficiency and energy-saving equipment system for the customer. The manufacturing
factory has passed the international ISO9001 quality system certification, and with the design and manufacturing capacity of pressure vessels. Customers can choose international ISO, EU CE, and
other standards for equipment design and production according to their needs.
Chromatography System Technical Parameter
Model Material Feed DS, % Feed capacity, t/h Product DS, % Output capacity, tpy
(F55)
HVD-CHRO-Q1.0 Refined F42 58-62 1.56-1.67 77 10000
HVD-CHRO-Q2.0 Refined F42 58-62 3.13-3.35 77 20000
HVD-CHRO-Q3.0 Refined F42 58-62 4.7-5.0 77 30000
HVD-CHRO-Q6.0 Refined F42 58-62 9.4-10.0 77 60000
HVD-CHRO-Q10.0 Refined F42 58-62 15.6-16.7 77 100000
HVD-CHRO-Q15.0 Refined F42 58-62 23.5-25.1 77 150000
HVD-CHRO-Q20.0 Refined F42 58-62 31.3-33.5 77 200000
