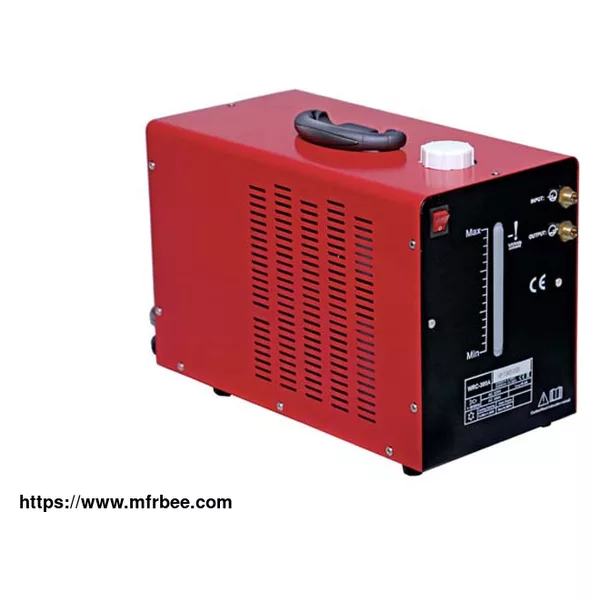

WRC-300 10L Tig Welder Cooler

Wrc 300 10L TIG welder cooler is a circulating cooling equipment with water tank capacity of 10L and maximum head of water pump of 30m. It is mainly used for cooling argon arc welding equipment. The working principle of wrc 300a is that the water in the high-temperature water tank is pressurized and circulated to the equipment to be cooled by the high lift centrifugal pump. The water with higher discharge temperature is dissipated by three rows of copper row high-quality radiators. After cooling by high-speed fan, it returns to the water tank and re enters the circulation system, so as to achieve the purpose of cooling the welding machine.

Advantage Of WRC300 10l Tig Welder Cooler

Economical water tank, small size, light weight, easy to move.

Built-in high-grade stainless steel centrifugal pump, high-quality heat-resistant motor, long life and durability.

Quick-plug connector, easy to install, waterproof and leak-proof.

Specification Of WRC-300 10l Tig Welder Cooler

Main voltage 220V 380V

Frequency 50Hz/60Hz

Current 1.18A 0.68A

Phase number 1 phase

Heat dissipating power 2.9KW

Pump power 0.26kw

Max.pressure 0.3Mpa

Tank capacity 10L

Working temperature -20℃-60℃

Net Weight 12kgs

Gross Weight 14kgs

Product dimension(mm) 450*250*320(L*W*H)

Packing dimension(mm) 550*280*370(L*W*H)

Application Of WRC-300 10l Tig Welder Cooler

AC and DC argon arc welding equipment, gas shielded welding equipment, plasma power supply equipment, resistance welding machine, laser cutting machine, etc.

As one of the leading process chillers manufacturers, Xlntchillers provides welding water cooler, industrial chiller cw 5200, etc. Contact us to buy welding water chiller or know more.
