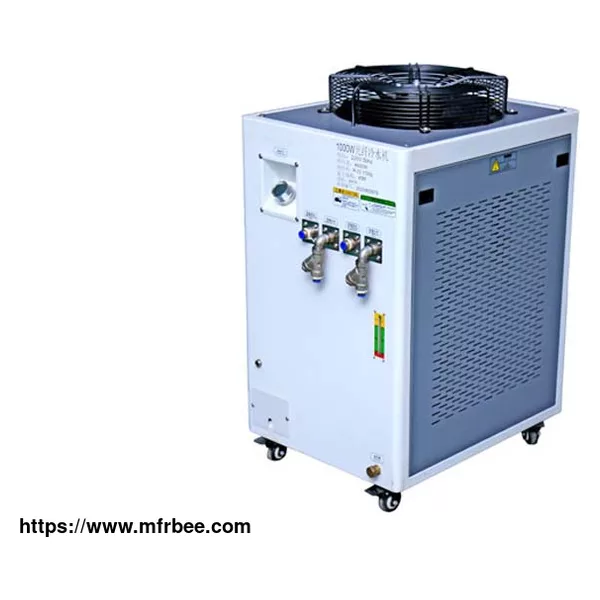

XLNT-1000 1000W Fiber Laser Chiller

XLNT-1000 Fiber chiller cooling system is used to cool 1000W fiber laser machine. The XLNT-1000 fiber water chiller can meet the precise temperature control requirements of fiber cutting machines and other equipment during cutting operations, and the laser chiller temperature control accuracy can reach ±0.3℃, which can ensure that the fiber laser equipment can work normally for a long time.

Advantage Of XLNT-1000 1000W Fiber Laser Chiller

The cooling capacity is 4600W.

The fiber laser generator and QBH connector can be cooled at the same time.

This type of industrial water cooled chillers is equipped with a professional water filter to meet the special needs of fiber laser machines.

Dual water temperature design: with automatic constant temperature function, two kinds of set temperature, different required temperature can be set separately, dual signal output protection function.

Specification Of XLNT-1000 1000W Fiber Laser Chiller

Voltage 220v

Frequency 50hz 60hz

Current 3.4A-16A

Compressor power 1.68KW 1.645KW

2.28HP 2.24HP

Cooling capacity 16510Btu/h 16640Btu/h

4.65kw 4.7kw

4780kcal/h 4880kcal/h

Electric assisted power 400w+1000W

Refrigerant R-22/R410A

Precision ±0.5℃

Reducer Capillary

Protection Over-current protection for compressor, flow alarm, over-temperature alarm

Pump power 0.55kw

Tank capacity 15L

Inlet and outlet Rp1/2'' + Rp1/2''

Max.lift 45M

Max.flow 70L/MIN

N.W 86KGS

G.W 96KGS

Product dimension 78*47*89CM(L*W*H)

Packing dimension 87*60*109CM(L*W*H)

Application Of XLNT-1000 1000W Fiber Laser Chiller

This chiller for laser machine is suitable for 800W~1000W fiber laser equipment.

As a leading water chiller supplier, Xlntchillers provides fume extractor, industrial chiller cw 5200, laser machine chiller, industrial laser chillers, chillers for lasers etc. Contact us to buy welding water chiller or know more.
