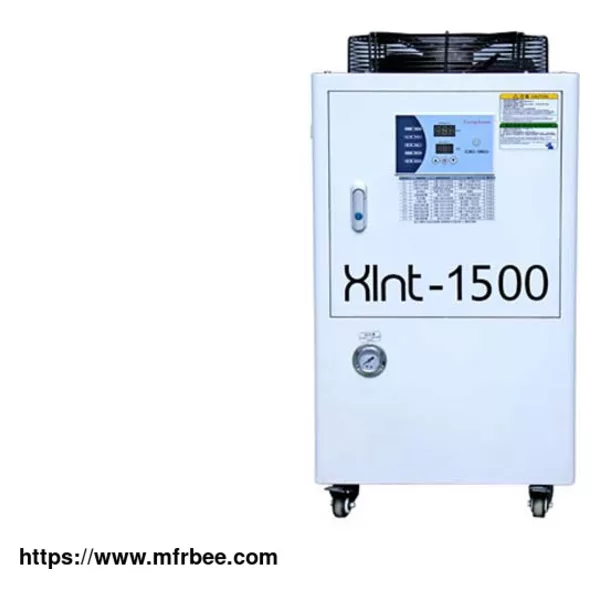

XLNT-1500 1500W Fiber Laser Water Chiller

XLNT-1500 1500W fiber water cooler is specially developed and produced to meet the cooling requirements of the 1500W fiber laser machine. XLNT-1500 fiber water chiller provides users with two intelligent temperature control modes: intelligent temperature control and constant temperature control, which intelligently meets the needs of different users in different environments.

Advantage Of XLNT-1500 1500W Fiber Laser Water Chiller

Dual temperature control, the low-temperature area cools the laser, and the normal temperature area is used to stabilize the temperature of the optical head lens.

The cooling capacity is 5600W.

The industrial water cooled chillers are equipped with high, low temperature and intelligent anti-icing protection functions.

Double water filter protection: equipped with pure water filter and deionized filter, the equipment operation is safer.

Specification Of XLNT-1500 1500W Fiber Laser Water Chiller

Voltage 220v

Frequency 50hz 60hz

Current 4A-15A

Compressor power 1.68KW 1.645KW

2.28HP 2.24HP

Cooling capacity 16510Btu/h 16640Btu/h

4.65kw 4.7kw

4780kcal/h 4880kcal/h

Electric assisted power 400w+1000W

Refrigerant R-22/R410A

Precision ±0.5℃

Reducer Capillary

Protection Over-current protection for compressor, flow alarm, over-temperature alarm

Pump power 0.75kw

Tank capacity 15L

Inlet and outlet Rp1/2'' + Rp1/2''

Max.lift 45M

Max.flow 70L/MIN

N.W 86KGS

G.W 96KGS

Product dimension 78*47*89CM(L*W*H)

Packing dimension 87*60*109CM(L*W*H)

Application Of XLNT-1500 1500W Fiber Laser Water Chiller

This chiller for laser machine is suitable for 1000W~1500W fiber laser equipment.

More Details Of XLNT-1500 1500W Fiber Laser Water Chiller

Adopt Original Imported Compressor And Condenser To Improve Refrigeration Efficiency

The High-power Fan On The Top Greatly Improves The Heat Dissipation Efficiency

Configure The Signal Output Protection Function To Make The Equipment Safer
