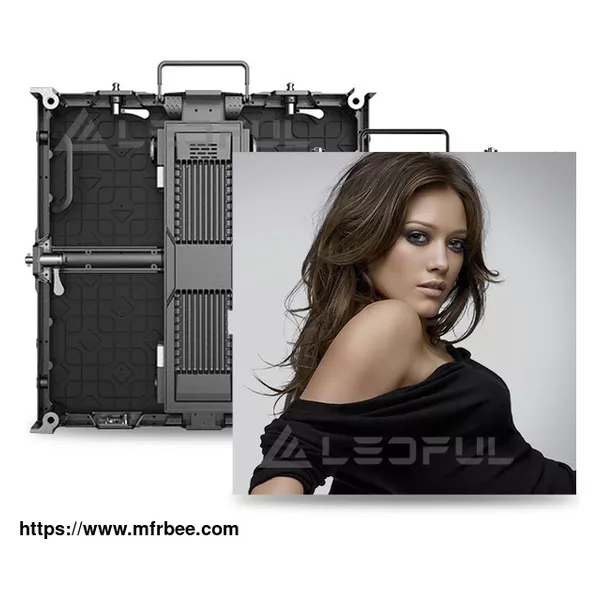

L Series Curved Rental LED Display

L SeriesLI2.6 | LI2.8 | LI2.9 | LI3.9 | LI4.8 | LI5.9 | LI6.2 LO3.9 | LO4.8 | LO5.9 | LO6.2

Front Maintenance

Curved Installation

No Light Leakage

Light and Thin

Parameter

L Series Outdoor LO 3.9 LO 4.8 LO 5.9 LO 6.2

Pixel Pitch(mm) 3.91mm 4.81mm 5.95mm 6.25mm

Pixel Matrix Per Sq.m 65536 43264 28224 25600

Pixel Configuration SMD1921 SMD2727 SMD3535 SMD3535

Brightness (nits) ≥4000 ≥4500 ≥4500 ≥4000

Scan 1/16 1/13 1/7 1/10

Cabinet Resolution 128×128 104×104 84×84 80×80

Power Con. (Max / Avg) 800/250w/sq.m 780/250w/sq.m 820/260w/sq.m 800/250w/sq.m

Module Dimension 250x250mm / 0.82x0.82feet

Cabinet Dimension 500x500x80mm / 1.64x1.64x0.26feet

Cabinet Weight 8kg / 17.6Ib ( Die-casting Aluminum)

Service Access Front / Rear

Rotation Angle -10° and +10°

Refresh Rate (HZ) 1920

Grey Scale (bit) 16

Viewing Angle (H/V) 160 / 160

IP Rate IP65

Input Voltage (AC) 110 / 240

L Series Indoor LI 2.6 LI 2.8 LI 2.9 LI 3.9 LI 4.8 LI 5.9 LI 6.2

Pixel Pitch(mm) 2.604mm 2.84mm 2.976mm 3.91mm 4.81mm 5.95mm 6.25mm

Pixel Matrix Per Sq.m 147456 123904 112896 65536 43264 28224 25600

Pixel Configuration SMD2121/SMD1515 SMD2121 SMD2121 SMD2121 SMD2121 SMD3528 SMD3528

Scan 1/32 1/22 1/28 1/16 1/13 1/7 1/10

Cabinet Resolution 192×192 176×176 168×168 128×128 104×104 84×84 80×80

Power Con. (Max/Avg) 800/250w/sq.m 780/240w/sq.m 760/220w/sq.m 700/200w/sq.m 720/200w/sq.m 740/220w/sq.m 700/200w/sq.m

Module Dimension 250x250mm / 0.82x0.82feet

Cabinet Dimension 500x500x80mm / 1.64x1.64x0.26feet

Cabinet Weight 8kg / 17.6Ib (( Die-casting Aluminum)

Service Access Front / Rear

Rotation Angle -10° and +10°

Brightness (nits) ≥1000

Refresh Rate (HZ) 3840

Grey Scale (bit) 16

Viewing Angle (H/V) 160 / 160

IP Rate IP31

Input Voltage (AC) 110 / 240

As one of the most professional outdoor led screen manufacturers, we provide HD LED panel, outdoor advertising lcd screens, led stage screen for sale, display screen advertising and etc. Contact us to know more.
