Specification
OF/OFR OF2.5 OF3 OF3.076 OF3.91 OF4 OF4.81 OF5
Pixel Pitch(mm) 2.5 3 3.08 3.91 4.00 4.81 5.00
Pixel Matrix Per Sq.m 160000 111111 105680 65436 62500 62500 40000
Pixel Configuration SMD1415 SMD1415 SMD1415 SMD1921 SMD1921 SMD1921 SMD1921
Brightness (nits) 5000 1800 5000 4000 5000 5500 4000 5500
Scan 1/16 1/16 1/13 1/16 1/10 / 1/8 1/13 1/8
Module Dimension 160x160mm 192x192mm 320x160mm 250x250mm 320x160mm
/256x128mm 250x250mm 320x160mm

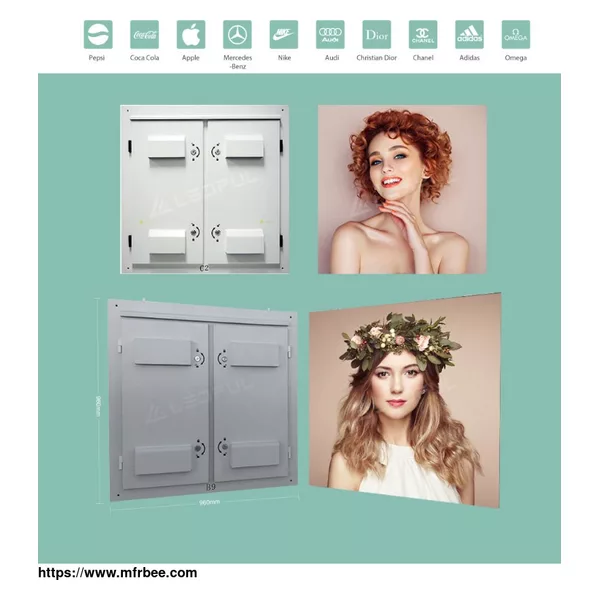

Cabinet Dimension 960x960mm (Cabinet size can be changed according to module size)
Cabinet Weight 46kg / 101lb (Iron) 46kg / 101lb (Iron) 45kg / 99lb (Iron) 44kg / 97lb (Iron) 44kg / 97lb (Iron) 43kg / 95lb (Iron) 43kg / 95lb (Iron)
Power Con. (Max / Avg) 900/ 180 w/sq.m 900/ 180 w/sq.m 900/ 180 w/sq.m 900/ 180 w/sq.m 900/ 180 w/sq.m 900/ 180 w/sq.m 900/ 180 w/sq.m
IP Rate IP65
Service Access Rear
Refresh Rate (HZ) >1920
Grey Scale (bit) 16bit
Viewing Angle (H/V) 140/140
Input Voltage (AC) 110V/240V
OF/OFR OF6 OF6.6 OF8 OF10S O10D OF16S OF16D
Pixel Pitch(mm) 6 6.67 8 10 10.00 16 16.00
Pixel Matrix Per Sq.m 27777 22500 15625 10000 10000 8000 10000
Pixel Configuration SMD3535 SMD2727 SMD3535 SMD3535 DIP346 SMD3535 DIP346
Brightness (nits) 5500 5500 6500 6500 10000 8000 10000
Scan 1/8 1/6 1/3 1/2 1/2 1/1 1/1
Module Dimension 192x192mm 320x160mm 320x160mm 320x160mm 320x160mm 256x256mm 256x256mm
Cabinet Dimension 960x960mm (Cabinet size can be changed according to module size)
Cabinet Weight 42kg / 93lb (Iron) 42kg / 93lb (Iron) 41kg / 90lb (Iron) 40kg / 88lb (Iron) 40kg / 88lb (Iron) 46kg / 101lb (Iron) 46kg / 101lb (Iron)
Power Con. (Max / Avg) 900/ 180 w/sq.m 900/ 180 w/sq.m 900/ 180 w/sq.m 900/ 180 w/sq.m 900/ 180 w/sq.m 900/ 180 w/sq.m 900/ 180 w/sq.m
IP Rate IP65
Service Access Rear
Refresh Rate (HZ) >1920
Grey Scale (bit) 16bit
Viewing Angle (H/V) 140/140
Input Voltage (AC) 110V/240V
As one of the most professional outdoor led screen manufacturers, we provide HD LED panel, pole LED display, outdoor LED advertising, led commercial advertising display screen, commercial
advertising led display, outdoor led advertising display, large led advertising screens, large advertising screens, large outdoor advertising screen, display screen advertising and etc. Contact us
to know more.
