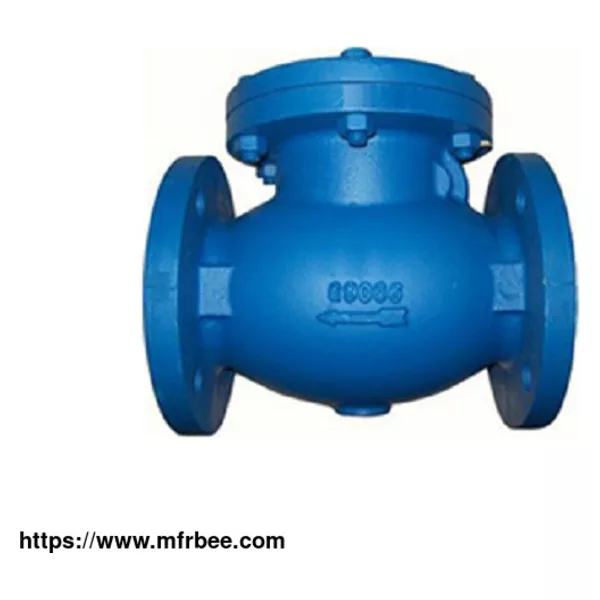

Check Valves Flanged End

Product Quick Detail

Place Of Origin
HEBEI, CHINA
Minimum Order
5
Packaging
Wooden Cases/Pallets
Delivery
3 weeks

Specifications


Check Valves Flanged End are used mostly to prevent the medium from flowing back in the piping system. Check valves only allow the medium to flow in one direction, and when the medium flows in, the disc of check valves swings off the seat to allow forward flow and when the flow stops, the disc swings back onto the seat to block reverse flow.

Check Valve Flange Type End Technical Specifications
Class Nominal diameter Unit Main connection dimension
Inch DN L D D1 D2 b z-∅d H
150Lb (2.0Mpa) 2" 50 mm 203 152 120.5 92 16.3 4 - 19 161
2-1/2" 65 mm 216 178 139.5 105 17.9 4 - 19 175
3" 80 mm 241 190 152.5 127 19.5 4 - 19 190
4" 100 mm 292 229 190.5 157 24.3 8 - 19 203
5" 125 mm 330 254 216 186 24.3 8 - 22 229
6" 150 mm 356 279 241.5 216 25.9 8 - 22 257
8" 200 mm 495 343 298.5 270 29 8 - 22 292
10" 250 mm 622 406 362 324 30.6 12 - 25.4 355
12" 300 mm 698 483 432 381 32.2 12 - 25.4 398
14" 250 mm 787 533 476.5 413 35.4 12 - 29 460
16" 400 mm 864 597 539.5 470 37 16 - 29 495
18" 450 mm 978 635 578 533 40.1 16 - 32 520
20" 500 mm 978 698 635 584 43.3 20 - 32 590
24" 600 mm 1295 813 749.5 692 48.1 20 - 35 650

Features and Benefits of Check Valves Flanged End
protect pumps and other equipment from damage caused by backflow
effective in preventing water hammer
lower maintenance costs; fewer moving parts
superior performance and reliability in a wide range of applications
