Steel Beam Posts
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Galvanized Steel Guardrail Posts - H beam post, C post, Sigma post manufacturer - for highway guardrail and road barrier
We produce all the posts for highway guardrail at best quality that has been proved by Australian, American, European market. We supply cold formed C post, Sigma post All component hot dip galvanized.
Generally, we use high strength steel Q345, with a minimum yield strength 345MPa, equal or superior to Australian steel HA350, European steel S355, ASTM Gr.50, JIS SPFC590.
Hot dipped galvanizing can be also done in our workshop. 1200g/m2(both side) or 80 micro is common requirement.
Highway Guardrail Posts are chief component supporting the beams of the public domain non-rigid road safety barrier system and the wire rope road safety barrier system. Guardrail posts play a very important supporting role in road collision protection. By increasing the moment of inertia, which is affected by the shape and area of the post section, the guard rail posts can be strengthened. Various countries use steel sections of different shapes for columns.
Highway Guardrail Steel Galvanized Posts / Poles
We can supply:
Galvanized guardrail post - W6x9 x 76 galvanized guard rail post
PVC coated guardrail post.
Steel Post Product Details
Material
Q235, Q345, Q255JR, ASTM A36, etc.
Types of guardrail posts
Round steel pipe post
Surface treatment
Hot-dip galvanized according to specifications: ISO1460, ASTM A653 or GB18226. Features a long service life due to its anti-rust and corrosion resistant characters, which proceed from its superior zinc coating or PVC coating
Square Pipe Post for Guardrails, Box Beam Guardrails
Highway Guardrails Hot Dipped Galvanized Steel Post
H Beam Post
H post, also known as I Post, without galvanizing for Guardrail of road project
Also 4"x 6' flange steel post
Round Steel Post
Galvanized steel post without flange plate. Round post is the common kind of highway guardrail post. It is made of steel pipe through cutting, punching and surface treatment. It has the advantages of simple production process, low cost and convenient maintenance and replacement.
C Steel Post
Guard Rail Post & Spacer Block
| Section & Size Options | |
| Post | Spacer |
| C - 150x100x5* | C - 150x100x5* |
| C - 150x75x5* | C - 150x75x5* |
| C - 120x80x5* | C - 120x80x5* |
| IPE - 157 | IPE - 157 |
| UPN - 120 | UPN - 120 |
| CHS - 4" NB | CHS - 4" NB |
| CHS - 3" NB | CHS - 3" NB |
Also available with 6mm instead of 5mm c/s.
Guardrail Steel Posts of All Types - Specifications
| Shapes: | Cross section sizes |
| U steel post | 120×80mm, 150×75mm |
| C steel post | 100×50mm, 120×55/68/80mm, 150×120mm, 1600×120mm |
| Sigma steel post | 100×55mm |
| Channel steel post | 120×55mm, 140×73mm |
| Square steel pipe post | 130×130mm or 4'×4', 5'×5', 6'×6' |
| Round steel pipe post | Round Shape Post (Diameter * Thickness * Length) Round Shape Post for W-beam / Two-wave highway guardrail 114mm * 4.0mm * 1200mm 140mm * 4.5mm * 2150mm Round Shape Post for 3 beams highway guardrails 140mm * 4.5mm * 1500mm |
Installation of Guardrail Beams with Posts
For guardrail installed in soft soil condition, we suggest the post without flange plate is used. The barrier system can be fixed quickly with post anchors.
For solid concrete road surface installation, we suggest that the steel post with plate is used. It can be fixed to the beams with bolts.
Installation of Round Post: One end of the Round post is connected to the guardrail plate by bolts, nuts and connectors, and the other end is embedded in the earth or fastened to the road surface by flannel, thus playing a supporting role and effectively preventing vehicles or pedestrians from rushing out.

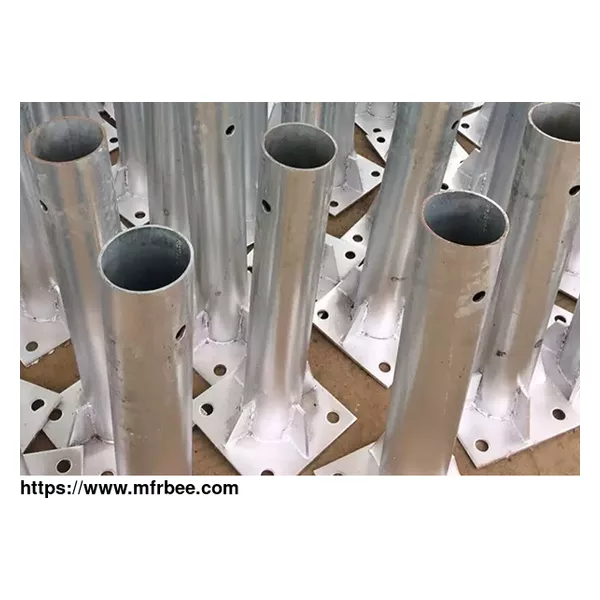

Q235 steel flanged post, for solid concrete road surface installation.
We can produce customized post, guardrails and accessories per customer drawings.
