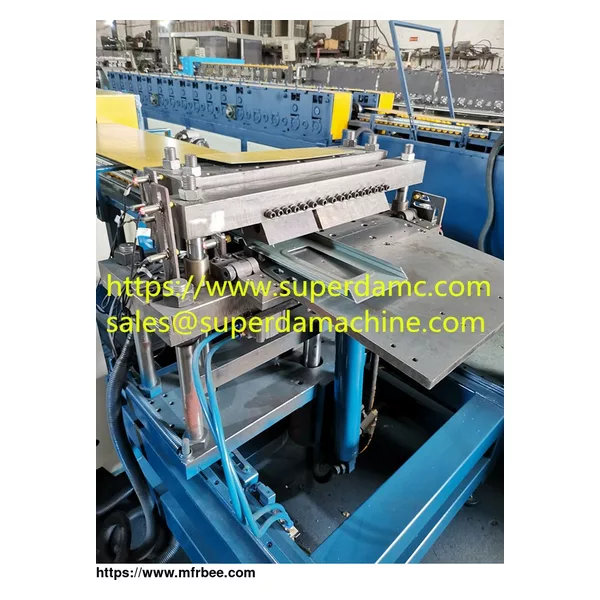

Electronic Industry Distribution Box Fabricating Machine
Product Quick Detail
- FOB Price
- USD $70,000.00 / Piece
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- Naked in container
- Delivery
- 90 Days
Specifications
Export Electrical Box Machine & Distribution Board Enclosure Machine For 150-350mm Different Depth, Electrical Boxes Length and Width 300-1200mm.
https://www.superdamc.com
Produced wall mount box dimension, height adjustable 300-1200mm, depth adjustable 150-350mm.
Electrical box machine technical parameters
| Item | Technology parameter | |
| Material | Material | cold-roll strip,galvanized steel strip |
| Thickness | 1.0-1.5mm（base on 1.5mm design, when T.1mm effect alittle not good as 1.5mm） | |
| Coil Inner | Ф360—Ф510 | |
| Process | Form Speed | 0-13m/min |
| Length | Not limit | |
| Quality | Length Precision | L≤1000mm：±0.5㎜ |
| Straight, Deflection | L≤1000mm，Bend no more than 1mm；Deflection no more than 2mm | |
| Forming size | As per design |
Electrical distribution board roll forming machine production
Uncoiler→ Straightening→Servo feeder→Hydraulic device→ Guide device → Roll forming machine →Bending device
