Weatherproof electrical outlet box making machine manufacturer
Product Quick Detail
- FOB Price
- USD $69,500.00 / Piece
- Minimum Order
- 1
- Place Of Origin
- China
- Packaging
- Naked in container
- Delivery
- 120 Days
Specifications

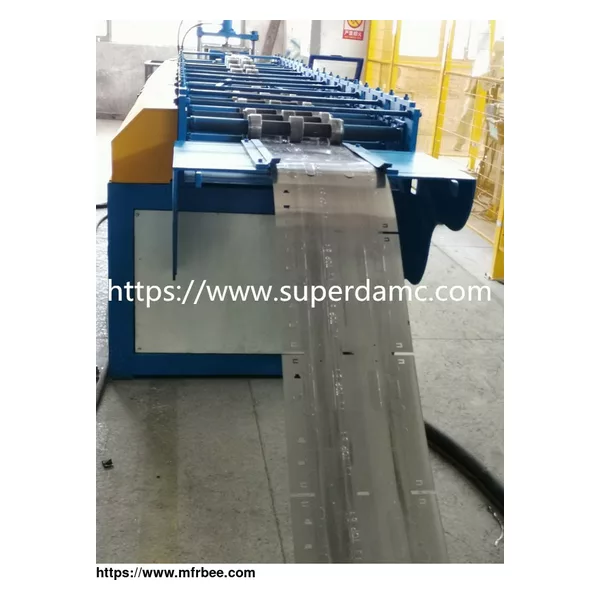

Automatic weatherproof electrical outlet box, flush mount electrical enclosure roll forming machine for making wall mounted switchboard enclosures, network box, circuit breaker enclosures, network enclosure.
https://www.superdamc.com
Flush mount electrical enclosure forming machine technology advantage.
Box roll forming machine accuracy
a. Shear length tolerance: ≤±0.3mm/m
b. Width tolerance: ≤± 0.3mm
c. Bending: ≤2mm/m
d. Burr: ≤0.1mm (new cutting edge cuts carbon steel plate in reasonable clearance)
e. Height tolerance: ≤±0.3mm
bove tolerance with flat edgeless one-stage steel coil As a prerequisite.
Surface quality: The surface of the finished product after processing does not add any processing defects.
Equipment structure and system configuration:
Overview: The production line is mainly composed of Uncoiler, Straightener, Hydraulic punching machine, forming machine, hydraulic cutting , hydraulic system, electrical control part and safety protection part.
1. Unloading (uncoiler): used for unwinding material and providing sheet material to the forming part, 3 tons of electric unwinding.
2. Leveling (straightener): 9-roller precision leveling (up 4 down 5), 2.2KW electric feeding, used to straighten the coil and eliminate material stress.
| No. | Machine name | QTY | REMARK |
| 1 | Uncoiler | 1 | |
| 2 | Straightener | 1 | |
| 3 | Servo Feeder | 1 | 2kw Mitsubishi motor |
| 4 | Servo Hydraulic machine | | With mould |
| 5 | Guide device | 1 | |
| 6 | Forming machine | 1 | |
| 7 | Hydraulic cutting and Bending | 1 | With mould |
| 8 | Control system | 1 | |
2. Forming mainframe: The mainframe base of this production line is welded with 100 * 100 * 4MM square tubes, the frame is integrated with a fixed archway, the side plates are made of 25mm steel plates, and the supporting parts are made of high-quality Taiwan bearings. Twisting up and down adjustment, the host has good rigidity and stable structure.
B: Roller (roller staiton): 16 sets of roller forming, high-quality Gr12 mold steel, HRC up to 58 ~ 60º are processed by precision CNC machine tools, precision is 6 ~ 7, surface roughness is above 0.8, no scratches on the surface.
