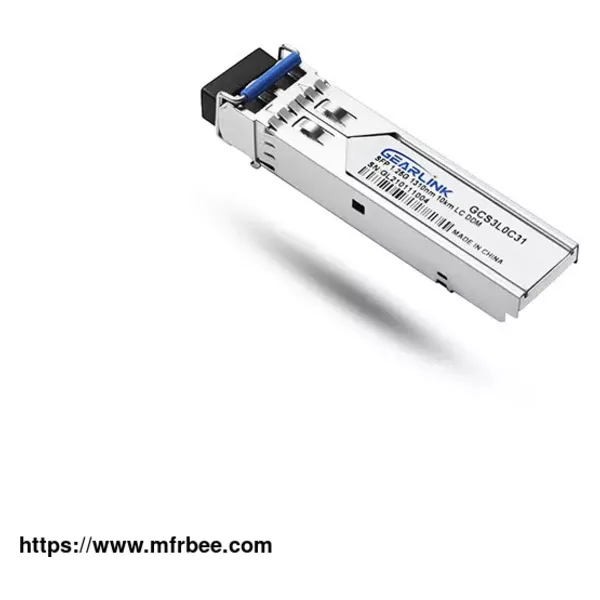

SFP 1.25 G 1310nm 10Km LC Transceiver

GearLink's gigabit fiber optic transceiver GCS3L0C31 is used in Gigabit Ethernet, dual-channel, and bidirectional transmission synchronous optical network (SONET). SFP 1.25 g 1310nm 10km transceiver conforms to SFP multi-source protocol and SFF-8472, with digital diagnostic monitoring(DDM) function. The package of GCS3L0C31 is SFP 10 KM with LC interface, the rate is 1.25G, the optical wavelength is 1310NM, and the maximum transmission distance is 10KM.

Compatibility of SFP 1.25 GBPS 1310nm 10Km LC Transceiver

Cisco

Juniper

Brocade

Dell

Mellanox

HP

HUAWEI

H3C

Ciena

GLC-LH-SM LH SMF 1310nm 10km SFP

GLC-GE-DR-LX 1000BASE-LX-SMF 1310nm 10km SFP/100BASE

WS-G5486 1000BASE-LX SMF 1310nm 10km SFP

GLC-LX-SM-RGD 1000BASE-LX SMF 1310nm 10km GBIC

SFP-GE-L LH SFP

GLC-LH-SMD 1000BASE-LX

Specification Of SFP 1.25 G 1310nm 10Km LC Transceiver

Absolute Maximum Ratings of SFP 1.25 G 1310nm 10Km LC Transceiver

Parameter Symbol Unit Min Max

Storage Temperature Range Ts oC -40 +85

Relative Humidity RH % 5 95

Power Supply Voltage Vcc V -0.5 +4

Recommended Operating Conditions of SFP 1.25 G 1310nm 10Km LC Transceiver

Parameter Symbol Unit Min Typ Max

Case Operating Temperature Range Tc oC -10 70

Power Supply Voltage Vcc V 3.135 3.3 3.465

Data rate Gb/s - 1.25/1.0625 -

As a fiber optic transceiver supplier, we will do our best to meet all the needs of customers.
