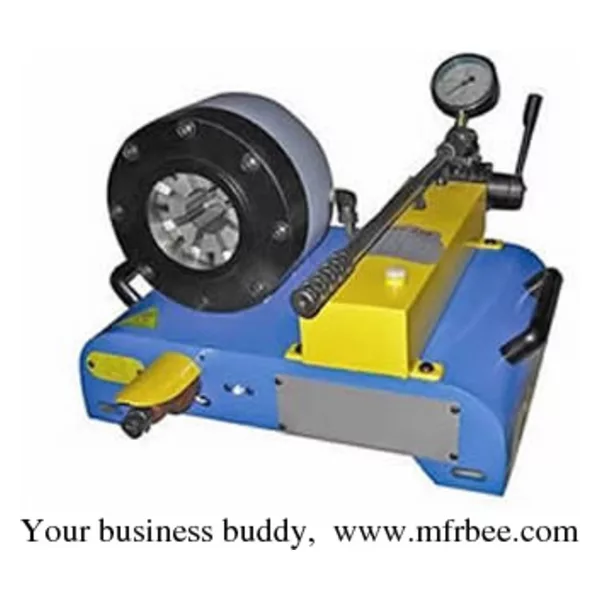

Manual Hose Crimping machine

Also named hand operated hose crimping machine and hand driven hose crimping machine, this kind of hose crimping machine has the same light advantage with mini automatic hydraulic hose crimping machine. Because of this feature it can be carried to the job sites. Not only can it be used in plain areas but also can be used in rugged terrain. In addition the equipment is the ideal device for areas where electric power is not available or cannot be used for safety reasons. There are three kinds of manual hose crimping machines produced by us, namely 3 inch hose crimping machine and two types of 1-1/4 inch hose crimping machines.

Manual hose crimping machine features and benefits:

Nice appearance, concise and stylish

Easy operation, lightweight and convenient to carry

Working for outdoors due to the power source of extra high pressure manual pump

3 inch manual hose crimping machine

Lightweight and stylish 3 inch manual hose crimping machine

Technical specifications:

Crimping range 1/8 inch to 3 inch

Precision 0.01mm

Max opening 172mm

Pressing force 6360KN

Die set 3 sets included

Weight 53kg

Dimension 400×450×500mm

Systematic pressure 35Mpa

1/4 inch to 1-1/4 inch manual hose crimping hose

Manual hose crimping machine used for crimping 1/4 to 1-1/4 inch hoses

Crimping range 1/4 inch to 1-1/4 inch

Pressing force 470KN

Die set 8 sets included

Weight 100kg

Dimension 600×350×460mm

1/8 inch to 1-1/4 inch manual hose crimping hose

Manual hose crimping machine used for crimping 1/8 to 1-1/4 inch hoses

Technical parameters:

Crimping range 1/8 inch to 1-1/4 inch

Precision 0.01mm

Max opening 100mm

Pressing force 1370KN

Die set 12 sets included

Weight 70kg

Dimension 550×620×395mm

Systematic pressure 30Mpa
