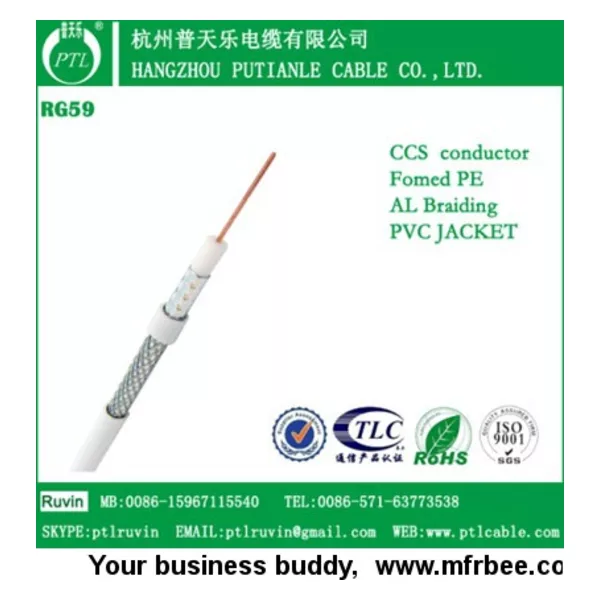

Catv Cable RG59

Packaging
N/A
Delivery
15 Days

RG59 STANDARD
Construction Specification
Item Material Diameter(mm)
1.Inner conductor Bare copper or copper clad steel 0.81
2.Dielectric Foamed PE 3.66
3.Outer conductor Bonded AL foil+aluminum braiding Nom.4.10
4.Jacket PVC or PE 6.10
Electrical Characteristics
1.Capacitance(pF/m) 52
2.Impedance(Ω) 75
3.Velocity(%) 85
4.Shielding Effectiveness(dB) 70
5.Maximum Working Voltage(Vrms) 3000
6.Return Loss(≥dB) VHF UHF 20 20
