Catv Cable KX6
Product Quick Detail
- Packaging
- N/A
- Delivery
- 15 Days
Specifications

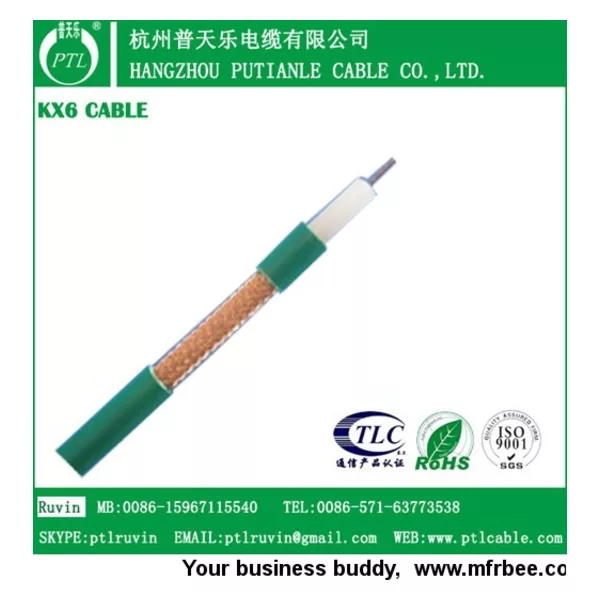

KX6 COAXIAL CABLE
Construction Specification
Item Material Diameter(mm)
1.Inner conductor Stranded Bare Copper 7*0.2
2.Dielectric Solid PE 3.70
3.Outer conductor Copper braiding (80%) 0.12mm/16/6
4.Jacket PVC 6.10
Electrical Characteristics
1.Capacitance(pF/m) 67±2
2.Impedance(Ω) 75±3
3.Velocity(%) 66
