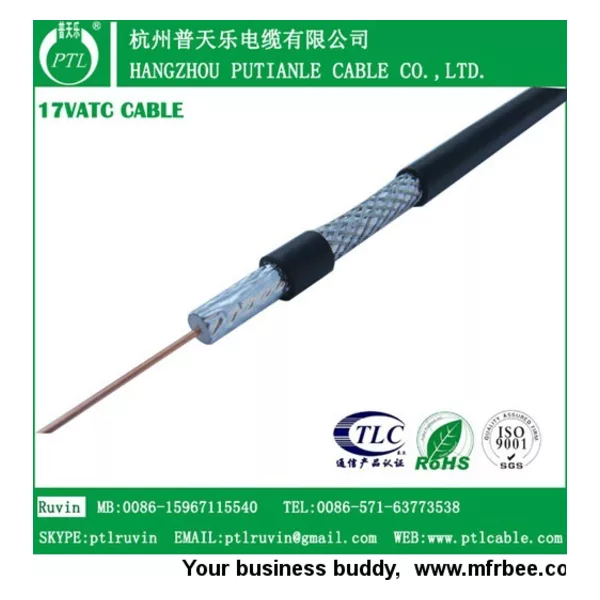

Catv Cable 17VATC
Product Quick Detail
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
17VATC
Construction Specification
Item Material Diameter(mm)
1.Inner conductor Bare copper or copper clad steel 1.13
2.Dielectric Foamed PE 4.80
3.First Shield AL/P/AL foil 4.95
4.Second Shield Aluminum wire/Tinned Copper Braid 5.43
4.Jacket PVC 6.85
Electrical Characteristics
1.Capacitance(pF/m) 52±2
2.Impedance(Ω) 75±3
3.Velocity(%) 85
http://www.rg6u.com
Construction Specification
Item Material Diameter(mm)
1.Inner conductor Bare copper or copper clad steel 1.13
2.Dielectric Foamed PE 4.80
3.First Shield AL/P/AL foil 4.95
4.Second Shield Aluminum wire/Tinned Copper Braid 5.43
4.Jacket PVC 6.85
Electrical Characteristics
1.Capacitance(pF/m) 52±2
2.Impedance(Ω) 75±3
3.Velocity(%) 85
http://www.rg6u.com
