Lmr Cable LMR100A
Product Quick Detail
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
LMR100

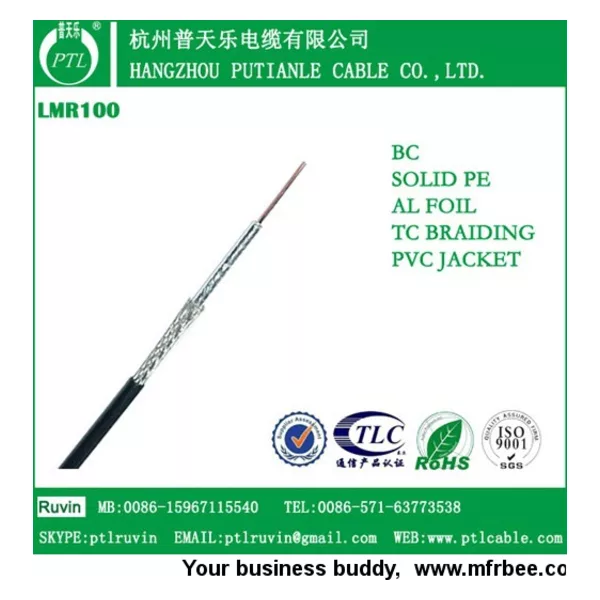

Construction Specification
Item Material Diameter(mm)
1.Inner conductor Copper Clad Aluminum 0.46
2.Dielectric Solid Polyethylene 1.52
3.Outer conductor Bonded AL Foil+TC Braiding Nom.2.10
4.Jacket PVC 2.79
Electrical Characteristics
1.Capacitance(pF/m) 101.1
2.Impedance(Ω) 50
3.Velocity(%) 66
4.Inner Conductor DC Resistance(Ω/km) 108/266
5.Outer Conductor DC Resistance(Ω/km) 31.2
6.Jacket Spark(kVrms) 2000
7.Peak Power Rating(kW)0.6
8.Sheilding Effectiveness(dB)90
http://www.rg6u.com
Construction Specification
Item Material Diameter(mm)
1.Inner conductor Copper Clad Aluminum 0.46
2.Dielectric Solid Polyethylene 1.52
3.Outer conductor Bonded AL Foil+TC Braiding Nom.2.10
4.Jacket PVC 2.79
Electrical Characteristics
1.Capacitance(pF/m) 101.1
2.Impedance(Ω) 50
3.Velocity(%) 66
4.Inner Conductor DC Resistance(Ω/km) 108/266
5.Outer Conductor DC Resistance(Ω/km) 31.2
6.Jacket Spark(kVrms) 2000
7.Peak Power Rating(kW)0.6
8.Sheilding Effectiveness(dB)90
http://www.rg6u.com
