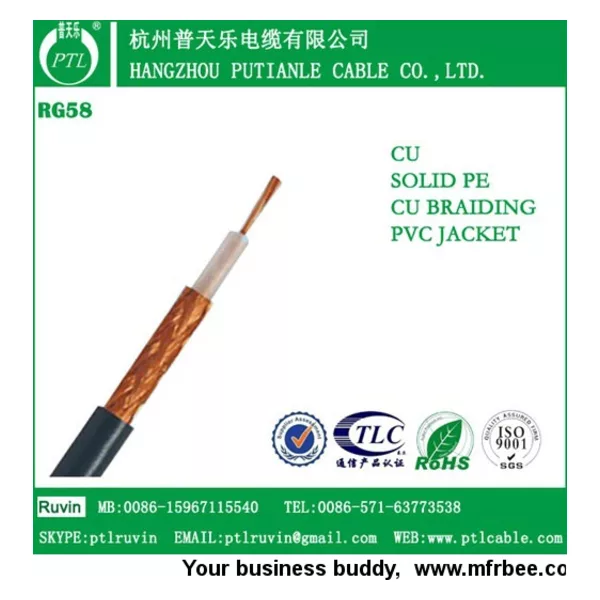

Feeder Cable RG58
Product Quick Detail
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
RG58
Construction Specification
Item Material Diameter(mm)
1.Inner conductor Tinned copper 19*0.18
2.Dielectric Soild Polyethylene(SPE) 2.95
3.Outer conductor Bonded AL Foil+TC Braiding Nom.3.50
4.Jacket PVC 4.95
Electrical Characteristics
1.Capacitance(pF/m) 101.05
2.Impedance(Ω) 50
3.Velocity(%) 66
4.Maximum Working Voltage(Vrms) 1400
5.Maximum Working Attenuation(MHz) 1000
