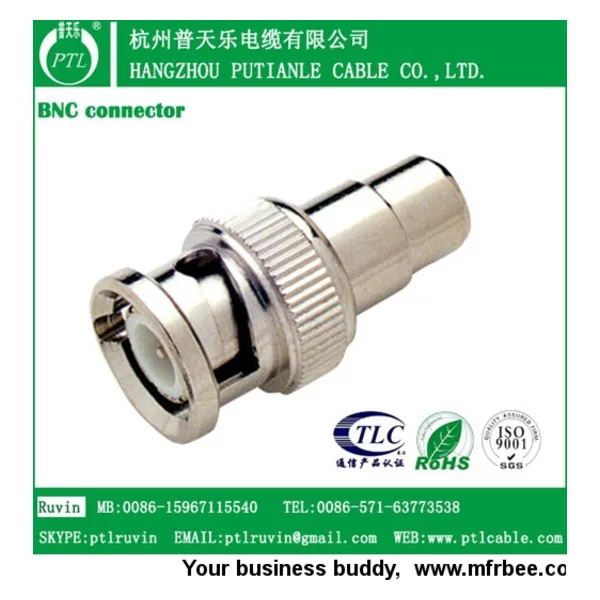

BNC CONNECTOR
Product Quick Detail
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Key Performance
Temperature range -65~+165 Insulation resistance ≥5000MΩ
Characteristic impedance 50Ω Dielectric Withstanding Voltage 1500V(r ms)
Frequency range 0~11GHz VSWR ≤1.30
Voltage rating 500V(rms)
Contact resistance Center conductor ≤1.5mΩ Durability 500Cycles
Outer conductor ≤1mΩ
Material And Plating
Body Brass , nickel plated
Male center contacts Brass , gold plated
Female center contacts Beryllium copper , gold plated
Insulators PTFE
Crimp ferrules Copper alloy , nickel plated
Gaskets Silicone rubber
