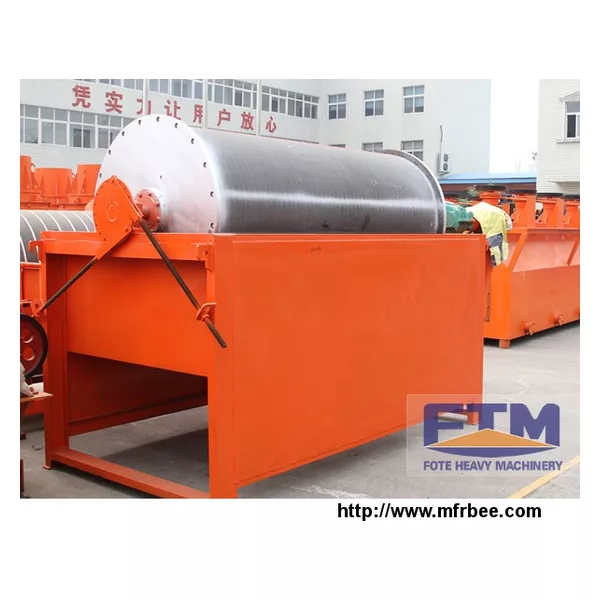

Magnetic Drum Separator

Brief Introduction of Magnetic Drum Separator

The Magnetic Drum Separator utilizes the combined force field of magnetism , pulsating fluid and gravity to continuously beneficiate fine weakly magnetic minerals . It is equipped with unique pulsating mechannism and possesses the advantages of large beneficiation ratio , high recovery , and a matrix that does not easily clog.

Magnetic Drum Separator Application

Magnetic Drum Separator is mainly used for cleaning, and especially suitable for the minerals with particle size less than 0.15mm. The Magnetic Drum Separator is also suitable for processing fine, weakly magnetic minerals, such as hematite, limonite, ilmenite, manganese, wolframite, tantalum-niobium, and etc. It is also suitable for removing iron and titanium from non-metallic minerals such as quartz, feldspar, nepheline, fluorite, ceramic material, and etc.

Magnetic Drum Separator Working Principle

Slurry is fed into cavity from the bottom of drum, and the magnetic ores fall into concentrate tank after reaching a certain height, while the non magnetic ores will enter into tailings tank along with slurry in the opposite direction with drum.

Magnetic Separator Feature

• Our machine uses vertical swivel rotation mode , So for each set of magnetic media , rinse ore concentrate direction is opposite with to the mine direction . Then Coarse particles can be washed out and needn't to pass through the magnetic media heap , thereby preventing the clogging of the magnetic medium.

• Our machine set ore pulp pulsating bodies , driver ore pulp generated pulsatile flow forces .Under the effect of the pulsating flow forces , The mineral particles in the ore pulp is always in a loose state, Then can improve the quality of magnetic concentrate .

• Our machine use special magnetic system structure and portfolio optimization magnetic media , so our machine ore size can up to 2mm , simplifies field grading operations and can be used widely

• The scavenging area is shorter than counter-current tank and the dewatering area is longer than fair current tank. Therefore, it has high recovery rate and concentrate grade.

• With a long scavenging area, and the high recovery rate and low grade tailings can be obtained even the capacity is large.

• Dewatering area is short.
