Factory Price Ore Shaker Table
Product Quick Detail
- Packaging
- standard container,in bulk or as the client's request
- Delivery
- 15 Days
Specifications

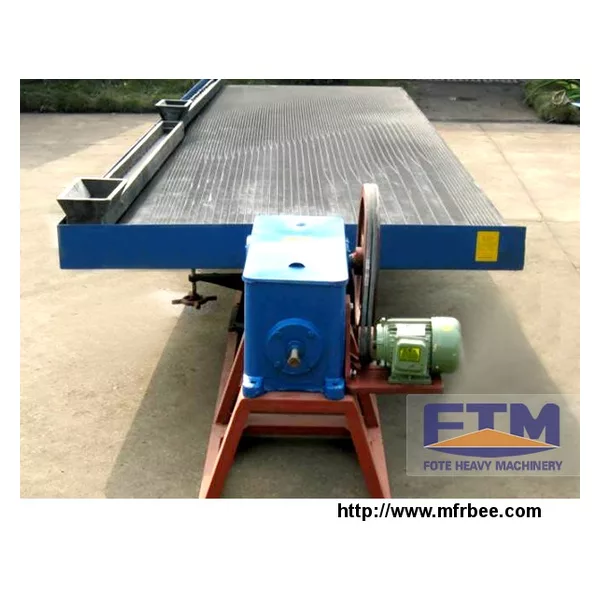

Ore Shaker Table Description
Ore Shaker Table is one of the major gravity ore dressing machines, in some aspect it is the most important gravity ore dressing machine. It was designed to concentrate the fine-grinding or micro-grinding rare metal & precious material.The Ore Shaker Table separate the mineral granular based on the gravity differences between the different materials inside the pulp. When the pulp reached the table surface from the feeding channel, the granular in it will be effected by the gravity force, water flow force, the inertial force and friction force which comes from the reciprocating movement of the table surface, under the effect of these four forces, the granular inside the pulp will be classified and moved to the different direction: the high density one will go front and drop from the concentration end, the gangue will go to the tailing side, and the middles will be re-concentrated on the shaking table.
.jpg)
Ore Shaker Table is to make separations based on the difference of specific gravity of feed materials, reciprocating asymmetrical movement and the stratification performance of the inclined table surface in the lateral water flow with obvious zone of the minerals with different specific gravities on the table, high quality of concentrates produced, convenient operation and adjustment and other features.
Application of Ore Shaker Table
Ore shaker table is one of the main equipments of gravity concentration. Ore Shaker Table is not only widely applied on separating tungsten, tin, tantalum niobium and other rare metals and the noble metal ore. Also widely used in separation for gold, silver, tin, columbium, tantalum, titanium, barium, tungsten, iron, chrome, manganese, zircon, lead, zinc, mercury, copper, aluminum, etc. The shaker effective recycling granularity scope is 2-0.037 millimeters.
Working Principle of Ore Shaker Table
The working principle of Ore Shaker Table is to use the combined action of the specific gravity difference of sorted minerals, alternating movement of bed surface, and transverse oblique water flow and riffle (or notch groove), to allow loose layering of ores on the bed surface and fan-shaped zoning. Then different products can be produced.
.jpg)
Ore Shaker Table Characteristics:
l High recovery ratio
l High concentration ratio
l Easy installation
l Simple operation
l Deck constructed of fiber glass
l Three different decks to choose
l Long working life
l Adjustable stroke length
