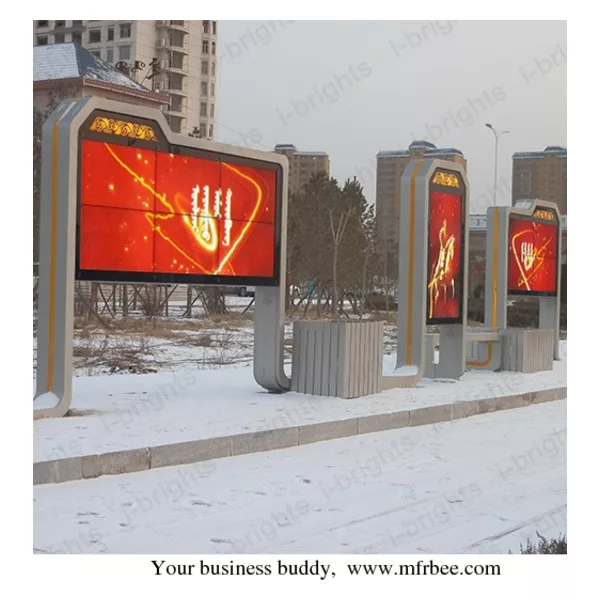

Outdoor LCD Display
Product Quick Detail
- Place Of Origin
- China
- Packaging
- wooden box
- Delivery
- 30 Days
Specifications
| Model No. | YT4700L-2×2 | YT4700L-3×3-S | YT4700L-2×3-S | |
| LCD Panel Size | 47'' | 47'' | 47'' | |
| Panel Brand | LG | LG | LG | |
| Aspect Ratio | 16：9 | 16：9 | 8:3 | |
| Backlight Technology | LED | LED | LED | |
| LCD Panel Technology | PVA | IPS | IPS | |
| Display Colours | 16.7M | 16.7M | 16.7M | |
| Display Size | 2072.8×1180mm | 3134.2*1768.6mm | 3134.2*1176.6mm | |
| Resolution | 1920×1080 | 1920×1080 | 1920×1080 | |
| Pixel Pitch | 0.76125×0.76125 mm | 0.76125×0.76125 mm | 0.76125×0.76125 mm | |
| Brightness | 1500cd/m2 | 1500cd/m2 | 1500cd/m2 | |
| Contrast Ratio | 1400:1 | 1400:1 | 1400:1 | |
| Viewing Angle | 178° | 178° | 178° | |
| Response Time | 8ms | 8ms | 8ms | |
| Brightness Control | Automatic control | Automatic control | Automatic control | |
| Backlight Life | 50000 Hours | 50000 Hours | 50000 Hours | |
| Installation Method | Floor standing | Floor standing | Floor standing | |
| Dimension of Overall Unit | 2500*2350*400mm | 3377*2077*400mm | 3285*1440*370mm | |
| Material of Housing | Steel with painting or alumimium with painting (alternative) | Steel with painting or alumimium with painting (alternative) | Steel with painting or alumimium with painting (alternative) | |
| Exterior Colours | Customized color | Customized color | Customized color | |
| Protection Rating | IP55 (Fan cooling) IP65(Air conditioner cooling ) | IP55 (Fan cooling) IP65(Air conditioner cooling) | IP55 (Fan cooling) IP65(Air conditioner cooling) | |
| Weight | 650 kg | 800 kg | 800 kg | |
| Computer Serial Input | RS-232 | RS-232 | RS-232 | |
| Network cable port | RJ45 | RJ45 | RJ45 | |
| DVI Input | One DVI input | One DVI input | One DVI input | |
| HDMI Input | One HDMI input | One HDMI input | One HDMI input | |
| Mains Input | AC100-240V,50/60Hz | AC100-240V,50/60Hz | AC100-240V,50/60Hz | |
| Power Consumption | 1500W | 3500W | 3500W | |
| Standby Power consumption | 30W | 30W | 30W | |
| Temperature Control | Intelligent constant temperature control | Intelligent constant temperature control | Intelligent constant temperature control | |
| Operating Temperature | -30°C~55°C | -30°C~55°C | -30°C~55°C | |
| Storage Temperature | -40°C~75°C | -40°C~75°C | -40°C~75°C | |
| Working/Storage Humidity | 10%-90% | 10%-90% | 10%-90% | |
| Cooling system | Forced air cooling or Air conditioner (Optional) | Forced air cooling or Air conditioner (Optional) | Forced air cooling or Air conditioner (Optional) | |
| Hardware | Embeded player or PC player(Optional) Touch function(Optional) Camera Monitoring (Optional) 3G networking (Optional) | Embeded player or PC player(Optional) Touch function(Optional) Camera Monitoring (Optional) 3G networking (Optional) | Embeded player or PC player(Optional) Touch function(Optional) Camera Monitoring (Optional) 3G networking (Optional) | |
| Software |
| Content releasing system from the server Player system Inquiry system(Optional) Local monitoring security system(Optional) Remote network (Optional) | Content releasing system from the server Player system Inquiry system(Optional) Local monitoring security system(Optional) Remote network (Optional) |
