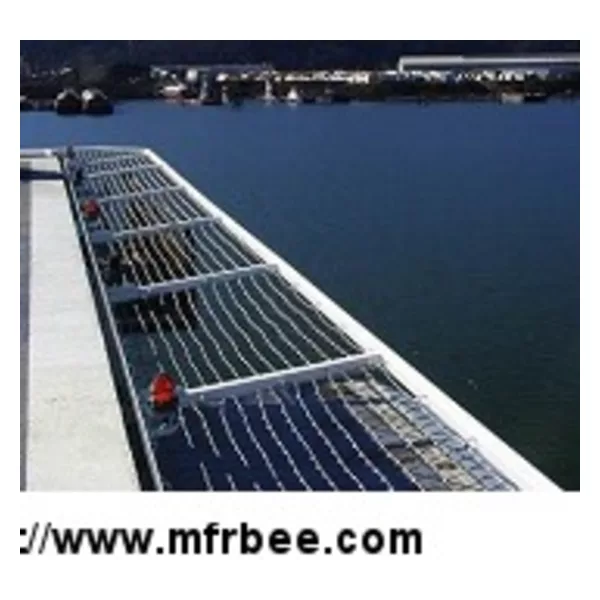

Stainless steel helideck rope mesh

Place Of Origin
hengshui
Minimum Order
1
Packaging
N/A
Delivery
15 Days

The specification of helideck mesh:

  • Rope material: high quality stainless steel 304, 316, 304L and 316L.
  • Rope diameter: 1.2mm to 3.2mm, and other rope diameters are also available.
  • Rope construction: 7 × 7 and 7 × 19 are the main used, but 1 × 7 and 1 × 19 are also supplied.
  • Mesh type: stainless steel ferrule rope mesh or stainless steel square rope mesh.
Helideck mesh of diamond-shaped openings
Code Rope Construction Rope Diameter Aperture Breaking Force
Inch mm mm kN
SHRM-01 7 × 19 1/8 3.2 120 × 208 7.38
SHRM-02 7 × 19 1/8 3.2 100 × 173 7.38
SHRM-03 7 × 7 3/32 2.4 70 × 121 4.18
SHRM-04 7 × 7 5/64 2.0 80 × 139 3.17
SHRM-05 7 × 7 5/64 2.0 70 × 121 3.17
SHRM-06 7 × 7 1/16 1.6 60 × 104 2.17
SHRM-07 7 × 7 1/16 1.6 51 × 87 2.17
SHRM-08 7 × 7 3/64 1.2 50 × 87 1.22
SHRM-09 7 × 7 3/64 1.2 40 × 69 1.22
All the parameters above can be modified based on the requirement of customers.
Helideck mesh of square openings
Code Rope diameter (mm) Rope construction Min breaking force (kN)
SHRM-10 1.5 7 × 7 1.7
SHRM-11 2.0 7 × 7 2.5
SHRM-12 2.5 7 × 7 3.9
SHRM-13 3.0 7 × 7 5.6
SHRM-14 4.0 7 × 7 10.7
SHRM-15 5.0 7 × 19 13.7
SHRM-16 6.0 7 × 19 20.5
All the parameters above can be modified based on the requirement of customers.
