Purpose:

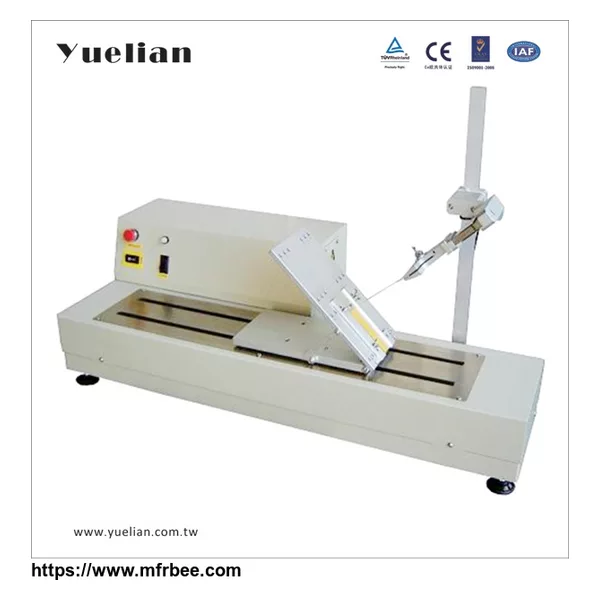

YL-1103A2 is designed for 90° and 180° peel test,frictional force test, horizontal tensile test and related test etc, especially the dead plate on the machine, which is available to adjust the angles. The tilting angle of test table and the height of load cell can be adjusted according to the individual test demand. It is available to conduct peel test from different angle. This tester brings much more convenience for the machine setting and test analysis in operation by using computer control method.
Specification:
Capacity | 0.5,1, 2, 5, 10, 20, 50KG |
Displayer | Computer display mode |
Control Mode | All computerized operation mode |
Test Stroke | 500mm |
Test method | horizontal movement |
Test speed | 0-30000mm/min, adjustable; |
Date Acquisition Speed | Approx 200HZ |
Machine Drive |
use AC servo motor as the machine drive, movement components,
consist of ball screw and high-precision slideway. |
Operation Mode |
with manual control keys, convenient to adjust the specimen position;
fixed inductor, available to conduct multi-direction adjustment of the position, height, and angle etc. |
Machine Dimension | 950 x 300 x 300mm (W×D×H) |
Standard Device | 1 set of grips, Test software, computer connection wire |
