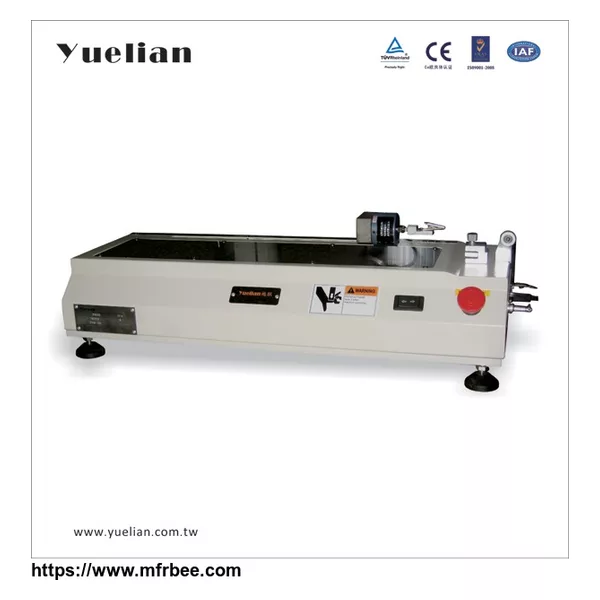

YL-1103S Horizontal Tensile Tester
Product Quick Detail
- FOB Price
- USD $3,200.00 / Piece
- Minimum Order
- 1
- Place Of Origin
- China(Mainland)
- Capacity
- 10N, 20N, 50N, 100N, 200N
- Force Resolution
- 1/500,000
- Stroke Resolution
- 0.005mm
- Test Speed
- 5~500mm/min
- Packaging
- 1 set each plywood case
- Delivery
- 30 Days
Specifications
Purpose
This tester is designed for 180° peel force testing, controlled by microcomputer chip, can do tensile and peeling test of materials, all computerized operation, automatic reset function, connected computer can output test chart and formed data as a base of material test.
Software Function
Test & Control System is designed for PC Electronic Universal Testing Machines, PC Hydraulic Universal Testing Machines and PC Compression testers; can conduct tensile, compression, bending, shearing, tearing and peeling test; use PC and interface board for data collection, preservation, processing and printing test result; can calculate max force, yield strength, average peeling force, max deformation, yield point, elastic modulus and other parameters; can conduct curve graphics processing, multi-sensor support, video and image interface, flexible data processing, MS-ACCESS database support, making more powerful function of system.
Specification:
| Capacity | 10N, 20N, 50N, 100N, 200N (can select double capacities preparation) |
| Display | Computer display mode |
| Force Resolution | 1/500,000 |
| Force Accuracy | ≤±0.3% |
| Stroke Resolution | 0.005mm |
| Control Mode | All computerized operation mode |
| Test Stroke | 500mm |
| Test Width | ￠140mm |
| Test speed | 5~500mm/min, can set by computer, with up & down fast adjustment button of grips |
| Force Unit Switch | Kgf, N, Ibf, g, ton, Mpa |
| Stop Mode | Overload stop, emergency stop button, specimen damage automatic stop, upper & lower limit set automatic stop, automatic reset function |
| Machine Dimension | 97 x 40 x 30mm (W×D×H) |
| Machine Drive | Stepper motor drive, synchronous wheel and precision ball screw drive |
| Power | 180W |
| Machine Weight | Approx 45kg |
| Power Supply | 220V 50/60HZ 5A |
| Standard Device | 1 set of grips, computer software, USB computer connection wire |
| Optional | Personal computer |
