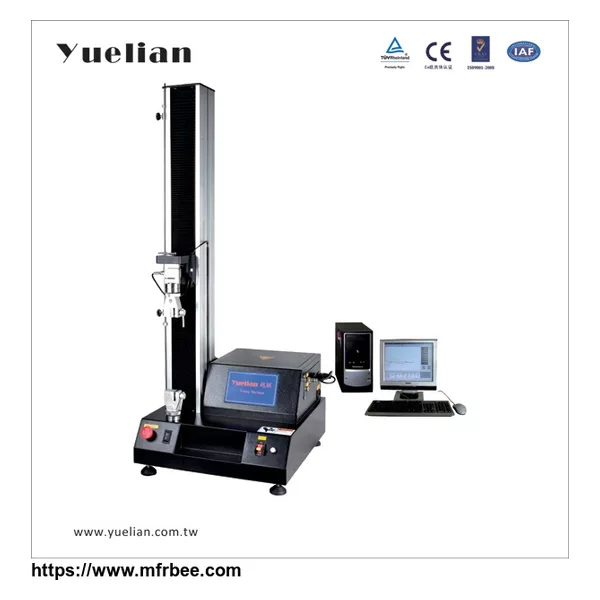

YL-1107 Extensometer Electronic Tensile Testing Machine
Product Quick Detail
- FOB Price
- USD $4,500.00 / Piece
- Minimum Order
- 1
- Place Of Origin
- China(Mainland)
- Test Stroke
- 700mm
- Test Width
- 140mm
- Test Speed
- 0.5~500mm/min
- Force Accuracy
- ≤±0.3%
- Packaging
- 1 set each plywood case
- Delivery
- 30 Days
Specifications
Purpose
This tester is designed for conduct tensile, compression, bending, shearing, bonding strength, peeling, tearing and other tests for rubber,plastic, leather, metal, nylon line, fabric, paper, aviation, packaging,construction,petrifaction,electrician,vehicle and other materials.It is a basic equipment of quality control,receiving inspection, physical test, mechanics research, material development.
Software Function
Test & Control System is designed for PC Electronic Universal Testing Machines, PC Hydraulic Universal Testing Machines and PC Compression testers;can conduct tensile,compression,bending,shearing,tearing and peeling test; use PC and interface board for data collection, preservation, processing and printing test result; can calculate max force, yield strength, average peeling force, max deformation, yield point, elastic modulus and other parameters; can conduct curve graphics processing, multi-sensor support, video and image interface, flexible data processing, MS-ACCESS database support, making more powerful function of system.
Specification:
| Capacity: | 10N, 20N, 50N, 100N, 200N, 500N, 1KN, 2KN, 5KN (can select double capacities preparation) |
| Display: | Computer display mode |
| Force Resolution: | 1/500,000 |
| Force Accuracy: | ≤±0.3% |
| Stroke Resolution: | 0.005mm |
| Control Mode: | All computerized operation mode |
| Test Stroke: | 700mm |
| Test Width: | Ø140mm |
| Test Speed: | 0.5~500mm/min, can set by computer, with up & down fast adjustment button of grips |
| Unit Force Switch: | Kgf, N, Ibf, g, ton, Mpa |
| Stop Mode: |
Overload stop, emergency stop button, specimen damage automatic stop, upper & lower
limit set automatic stop, automatic reset function |
| Machine Dimension: | 50*52*142cm (W×D×H) |
| Machine Drive: | Servo motor drive, synchronous wheel and precision ball screw drive |
| Power: | 400W |
| Machine Weight: | Approx 75kg |
| Power Supply: | 220V 50/60HZ 10A |
| Standard Device: | 1 set of grips, computer software, USB computer connection wire |
| Optional: | Personal computer |
