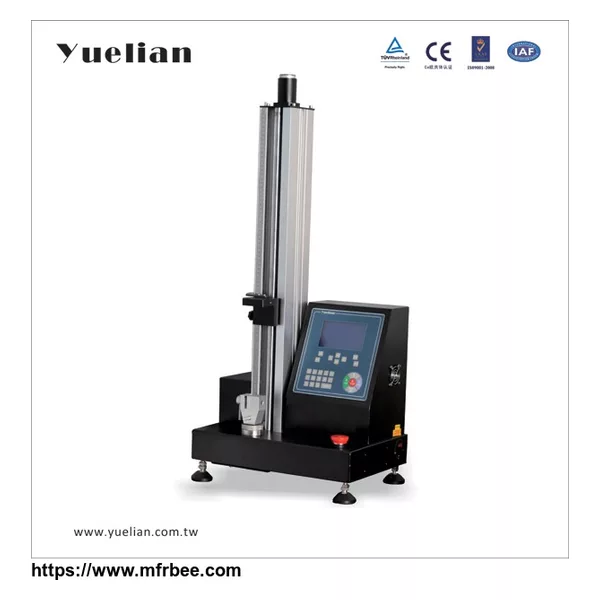

YL-1109B Peel Strength Testing Machine
Product Quick Detail
- FOB Price
- USD $4,500.00 / Piece
- Minimum Order
- 1
- Place Of Origin
- China(Mainland)
- Force Resolution
- 1/500,000
- Force Accuracy
- ≤±0.3%
- Stroke Resolution
- 0.005mm
- Test Stroke
- 500mm / 700mm
- Test Width
- 140mm
- Packaging
- 1 set each plywood case
- Delivery
- 30 Days
Specifications
Purpose:
The tester is designed to conduct tensile, compression, adhesive strength, peel, tear and bending tests etc. for metal, rubber, plastics, textile, leather, paper, composite materials and so on. The new developed B type LCD display screen operation mode are full of elasticity on the collocation selections, with the functions of analysis, statistics, storage etc. on the computer by connection to the special software. It is easy to operate.
Feature:
1.The transmission efficiency of this tester is more than 85%. With little energy loss, high precision, large extensibility and available to operate by single machine and connection to computer.
2.Available to display the force and displacement simultaneously.
3.Adopt stepper motor drive and precise ball screw drive, available to set the test speed.
4.With up & down fine adjustment button and automatic reset function after finishing the tests.
5.Available to connection to printer and output the test report.
Design standard:
ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7
Specification:
| Capacity | 10N,20N,50N,100N,200N,500N,1KN(can select double capacities preparation) |
| Display | computer display |
| Force Resolution | 1/500,000 |
| Force Accuracy | ≤±0.3% |
| Stroke Resolution | 0.005mm |
| Control Mode | Computer operation |
| Test Stroke | 500mm / 700mm |
| Test Width | Ø140mm |
| Test Speed | 5~600mm/min, can set on display, with up & down fast adjustment button of grips |
| Force Unit Switch | Kgf, N, Ibf, g, ton, Mpa |
| Stop Mode |
Overload stop, emergency stop button, specimen damage automatic stop, upper & lower
limit set automatic stop, automatic reset function ,available to continuous tensile or compression test |
| Machine Dimension | 40×30×95cm (W*D*H) |
| Machine Drive | Stepper motor, synchronous wheel and precision ball screw drive |
| Power | 180W |
| Machine Weight | Approx 30kg |
| Power Supply | 220V 50/60HZ 10A |
| Standard Device | 1 set of grips, computer software, 232 computer connection wire |
| Optional | Personal computer |
