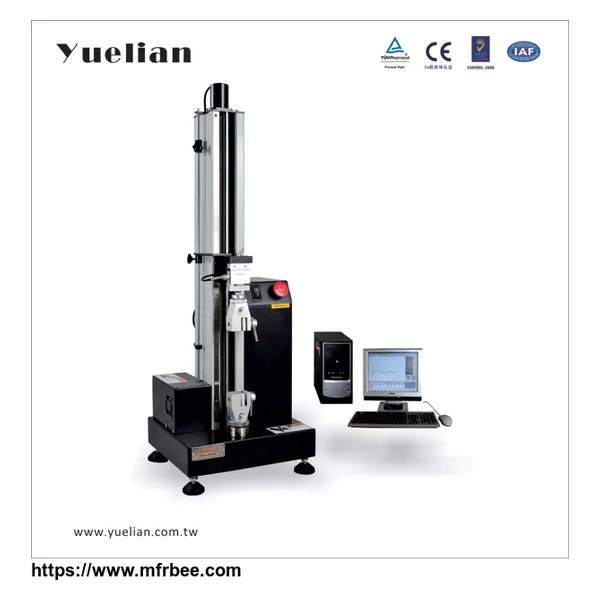

YL-1109C Peeling Strength Test Machine

Purpose:

This tester is designed for glass, display screen, magnet ring, mobile phone, portable computer, beverage bottle and container bottle and so on to conduct the compression test, which can know the stress state of all parts of products. It is available to improve the quality based on the test result.

Software function:

1. Machine is available to test tensile, compress, bend, cut, tear, peel.etc.

2. Computable Maximum force, yield strength, average peeling strength, max. Deformation, yield point, flexibility, etc.

3. Can connect with computer of LCD operate, convenient for different customer use.

4. Support 2 type languages: Chinese and English.

5. Support 2 unit types: SI, KG-cm. 5 type common units: N, kN, g, kg, Lb, convenient unit switching, can meet the different standards.

6. Adopt PC and interface board to collect, save, process and print test data, Can do curve process, multi-sensor support, graphical interface, versatile data processing, MS-ACCESS data support, make the system more powerful.

Standard:

ISO 7500-1 , JJG475-88 , ASTM E4 , DIN5122 , JIS B7721/B7733 , EN 10002-1,EN 1002-2, BS1610,

GB T228

Machine structure:

1. Hi-quality stepper motor, precise circle-arc gear synchronous wheel, synchronous belt and ball screw, combine with high precision encoder;

2. Screw shield is made of aluminum extrusion forming, surface sandblasting, anode bright silver procession,exquisite craft.

3. Machine shell is sprayed with advanced electrostatic powder.

4. The up and down stroke micro-adjust switch with automatic reset function.

5. Fast disassembly type connector, can easily replace different function fixtures.

6. Machine protection: Over-stroke, over load, emergency switch protection.

Machine protection: Over stroke, Over capacity, Emergency Braking Switch

Specification:
