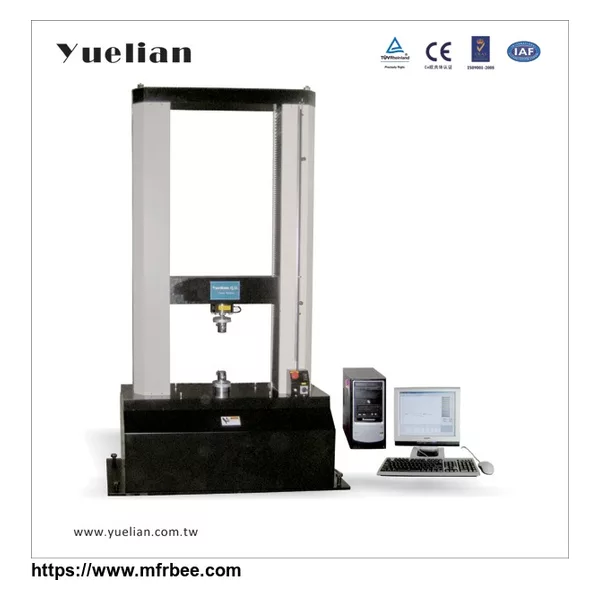

YL-1152 Universal Tensile Strength Material Testing Machine
Product Quick Detail
- FOB Price
- USD $7,000.00 / Piece
- Minimum Order
- 1
- Place Of Origin
- China(Mainland)
- Capacity
- 1KN, 2KN, 5KN, 10KN, 20KN, 50KN, 100KN, 200KN
- Force Resolution
- 1/500,000
- Test Stroke
- 1000mm
- Test Width
- 550mm
- Test Speed
- 0.001~1000mm/min
- Packaging
- 1 set each plywood case
- Delivery
- 30 Days
Specifications
Feature
YL-1152 Universal Tensile Strength Material Testing Machine apply to metal rod, concrete, fabric etc. Floor type, is more stable and convenient for operating. Strong structural and small volume, transmission efficiency more than 70%, less energy loss and high precision, operate easily, could connect to computer.
Standard
ISO 7500-1 , JJG475-88 , ASTM E4 , DIN5122 , JIS B7721/B7733 , EN 10002-1,EN 1002-2, BS1610,GB T228
Specification
| Capacity: | 1KN, 2KN, 5KN, 10KN, 20KN, 50KN, 100KN, 200KN(Available for double capacities) |
| Display | Computer display |
| Force Resolution | 1/500,000 |
| Force Accuracy | ≤±0.3% |
| Stroke Resolution | 1/500,000 |
| Control Mode | Full computer operating mode |
| Test Stroke: | 1000mm |
| Distance between two columns(Test Width): | 550mm |
| Test speed: | 0.001~1000mm/min Computer set with up and down quick adjustment button of grips |
| Stop Mode: | Overload stop, emergency stop, specimen damage automatic stop, upper and lower limit automatic stop, automatic reset function |
| Machine Drive: | Servo-motor driven, synchronous wheel and precision ball screw drive |
| Force sensor: | Load Cell comply with ASTM-E4 standard which accuracy is limited within 1.0 % |
| Dimension: | 108*85*205cm (W*D*H) |
| Weight: | About 1250kg |
| Power: | 2500W |
| Voltage: | 380V 50HZ 2KW |
| Accessories | 1 set of grips, test software, USB computer connection wire |
| Optional: | Personal computer |
