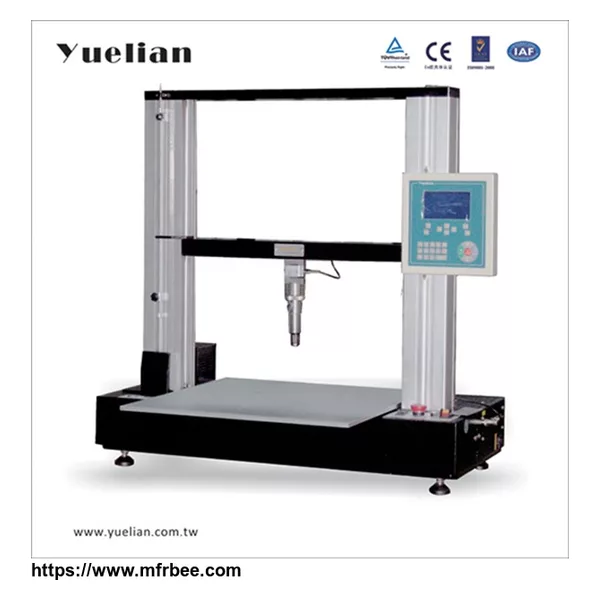

YL-1209B Compression Resistance Tester
Product Quick Detail
- FOB Price
- USD $6,500.00 / Piece
- Minimum Order
- 1
- Place Of Origin
- China(Mainland)
- Capacity
- 10N,20N,50N,100N,200N,500N,1KN,2KN,5KN
- Force Accuracy
- ≤±0.3%
- Travel Resolution
- 0.005mm
- Stroke(W/O Grips)
- 350mm
- Test Space
- 600*600mm
- Test Speed
- 0.5~500mm/min
- Packaging
- 1 set each plywood case
- Delivery
- 30 Days
Specifications
Purpose
This tester is designed for testing display screens compression resistance under a certain load.It is popular with manufacturers of display screens,research,develop and teste computer screen or concerning display screens.It may test compression resistance of any point in flat surface by adjusting X and Y axle, order Z axle move down by system after position,and keep set time,finish force value and time test graph,then get compression resistance of the specimen from that graph.
Standard
ISO 7500-1 , JJG475-88 , ASTM E4 , DIN5122 , JIS B7721/B7733 , EN 10002-1,EN 1002-2, BS1610,GB T228
Specification
| Capacity: | 10N,20N,50N,100N,200N,500N,1KN,2KN,5KN（two capacities is available） |
| Force resolution: | 1/500,000 |
| Force accuracy: | ≤±0.3% |
| Travel resolution: | 0.005mm |
| Control mode: | Display control or computer control |
| Stroke(w/o grips): | 350mm |
| Test space: | 600mm×600mm |
| Test speed: | 0.5～500mm/min |
| Force unit conversion: | kgf,N,Ibf,g,ton,Mpa |
| Stop mode: | over-load stop,emergency stop,specimen broken automatic stop,top and bottom limitation automatic stop,automatic reset function |
| Machine Dimension: | 96×45×97cm(W×D×H) |
| Machine Weight: | approx.80kgs |
| Motor: | servo motor drive,synchronizing wheel and presion balls screw driving |
| Power: | 400W |
| Power supply: | 220V 50/60HZ 10A |
| Standard accessories: | a set of grips,english operation manual |
