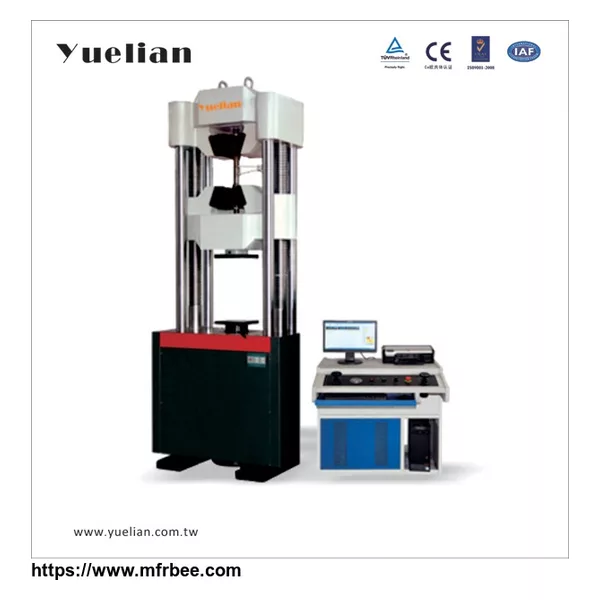

YLH Computer-control Compression Testing Machine
Product Quick Detail
- FOB Price
- USD $15,000.00 / Piece
- Minimum Order
- 1
- Place Of Origin
- China(Mainland)
- Test Force Measurement Accuracy
- ±1%
- Compression Space(Mm)
- 500/1500
- Column Spacing (Mm)
- 500/700/1100
- Piston Stroke (Mm)
- 80
- Packaging
- 1 set each plywood case
- Delivery
- 30 Days
Specifications
Purpose
This machine is mainly used tensile, compression, and bending mechanical properties test for metal and nonmetal materials.
Specification
| Model: | YLH-1000 | YLH-2000 | YLH-3000 | YLH-5000 | YLH-10000 |
| Test Force Range(KN): | 40～1000 | 80～2000 | 120～3000 | 200～5000 | 400～10000 |
| Test force measurement accuracy: | ±1% | ||||
| Mainframe structure: | Two-column | Four-column | |||
| compression space(mm): | 500(according to user requirements) | 1500(according to user requirements) | |||
| Pressure plate size (mm): | 500×500 | 500×500 | 500×500 | 600×600 | 1000×1000 |
| Column spacing (mm): | 500 | 500 | 500 | 700 | 1100 |
| Piston stroke (mm): | 80 | 80 | 80 | 80 | 80 |
| Concrete (rock) modulus of elasticity: | Extensible Configuration | ||||
| power: | 4.5KW | 5.0KW | 7.5KW | 11KW | |
| Mainframe size(mm): | 800×580×1650 | 800×580×1650 | 800×580×1800 | 1150×900×3000 | 1600×2000×3800 |
| working condition: | room temperature 10℃～30℃, relative humidity not more than 80% | ||||
| Weight(kg): | 2000 | 2300 | 2550 | 8500 | 15000 |
