Purpose

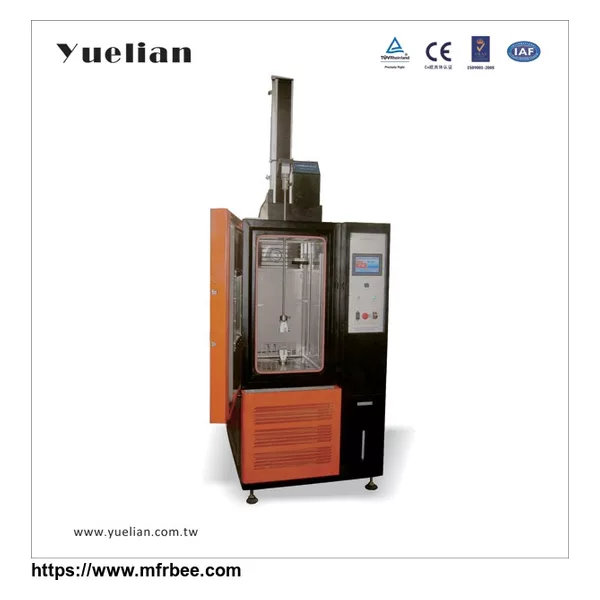

This tester is designed as improved model for environment testing, installation high and low temperature testing chamber, can test tensile, pressure, tearing, shearing, peeling strength, deconvolution strength, ring initial adhesion strength and other physical performance. Can remove the chamber to increase use space and bring convenience when using room temperature tests.
Software Function
Test & Control System is designed for PC Electronic Universal Testing Machines, PC Hydraulic Universal Testing Machines and PC Compression testers; can conduct tensile, compression, bending, shearing, tearing and peeling test; use PC and interface board for data collection, preservation, processing and printing test result; can calculate max force, yield strength, average peeling force, max deformation, yield point, elastic modulus and other parameters; can conduct curve graphics processing, multi-sensor support, video and image interface, flexible data processing, MS-ACCESS database support, making more powerful function of system.
Specification
Capacity: | 10N, 20N, 50N, 100N, 200N, 500N, 1KN, 2KN |
Temp. Rang: | 0, -20, -40, -60, -70℃~150℃ |
Display: | Computer display mode |
Force Resolution: | 1/500,000 |
Force Accuracy: | ≤±0.3% |
Stroke Resolution: | 0.005mm |
Control Mode: | All computerized operation mode |
Temp. Control: | PID automatic calculation, stable error |
Display Accuracy: | 0.1℃ |
Temp. Accuracy: | ±1℃ |
Circulation System: | Fan force circulation system |
Heating System: | SUS304 stainless steel heat radiation type of heater |
Cooling System: | Fan cooling type, high-efficiency compressor, environmental protection cooling medium |
Protection Device: | Leakage and overload protector, compressor over protector, humidifier temperature protection, temperature limit protection device |
Chamber Material: | SUS#304 stainless steel |
Test Stroke: | 650mm |
Test Width: | ¢140mm |
Chamber Dimension: | 40×40×80cm(W×D×H) |
Test Speed: | 0.5~500mm/min, set by computer, with up & down fast adjustment button of grips |
Force Unit Switch: | Kgf, N, Ibf, g, ton, Mpa |
Stop Mode: | Overload stop, emergency stop button, specimen damage automatic stop, upper & lower limit set automatic stop, automatic reset function |
Machine Dimension: | 100×120×280cm(W×D×H) |
Machine Drive: | Servo motor drive, synchronous wheel and precision ball screw drive |
Power: | 400W |
Machine Weight: | Approx 420kg |
Power Supply: | 220V 50/60HZ 30A |
Standard Device: | Extension pole of grips, heat abstractor, 1 set of grips, computer software, USB computer connection wires |
Optional: | Personal computer |
