Usage
The device is designed which is according to the requirements of IEC60529-89, GB4208-93 standard.It is applied to the shell protection grade (IPX mark) second feature numbers 5 and 6 (water spray and spray test), test period should be used to keep the dry velocity constant of.
It meets the standard of GB4208-93、GB2423、IEC60529 etc for shell protection grade testing

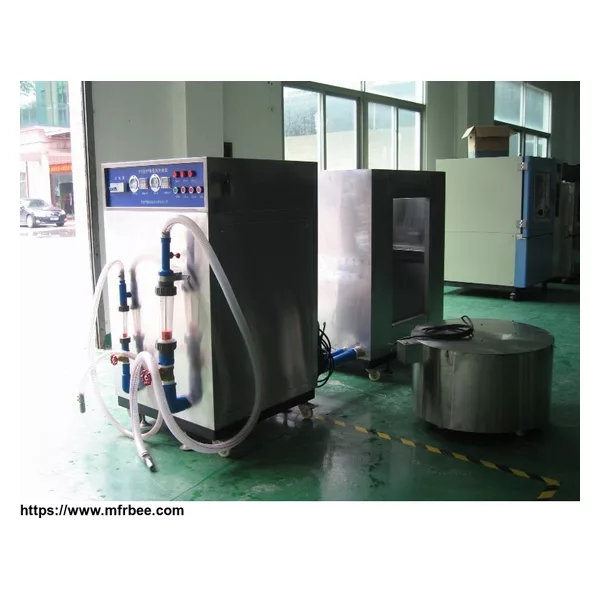

Structure
Materials: body is made of SUS304 stainless steel material. The nozzle material: stainless steel SUS304
Control board: operation buttons (power supply, flushing 1, flushing 2, turntable, load test timing, test timing)
Main configuration: turntable, load, 2 sets of flow meter ,2 sets of booster pumps,2 sets of pressure gauges,2 timers, valve, nozzle, high pressure hose each nozzle per 5 meters, control cabinet power distribution.
Distribution control cabinet: connecting plate, the total power leakage circuit breaker
Standard configuration: 1 line of cable, five Rui (four wire + one protection grounding,) equipment manuals, warranty cards, 1 copies of the certificate Leakage protection device: leakage protection.
Controller
time controller: IS~9999H
pressure gauge pointer
Flow-meter: 0~1000L, 1M3~10M3
booster pump: IPX5 1 IPX6 1
Technical instruction
level | IPX 5 | IPX 6 |
Testing name | Rain testing | Rain testing |
Nozzle inner diameter | 6.3mm | 12.5 mm |
The distance between sample and nozzle |
2.5m ~ 3m, Water flow: 12.5 L/min ( 750 L/h ) |
2.5m ~ 3m, Water flow: 100 L/min ( 6000 L/h ) |
Testing time | According to the test sample shell surface area calculation, every square metre is 1 min (not including the installation area of at least 3 min) |
