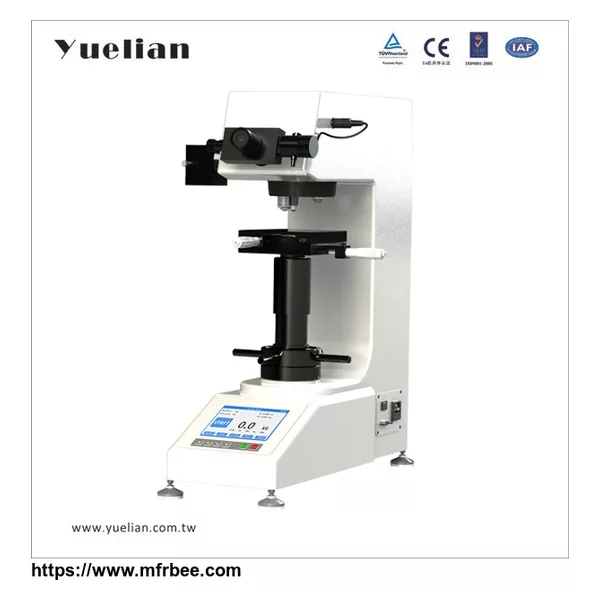

YL-HV10 Vickers Hardness Tester
Product Quick Detail
- FOB Price
- USD $5,000.00 / Piece
- Minimum Order
- 1
- Place Of Origin
- China(Mainland)
- Testing Force
- 2.94, 4.9, 9.8, 19.6, 24.5, 29.4, 49.0
- Testing Range
- 8HV~2900HV
- Hardness Indication
- 1HV/LCD Display
- Digital Eyepiece
- Magnification:10x
- Packaging
- 1 set each plywood case
- Delivery
- 30 Days
Specifications
Purpose
YL-HV-10M/10P/10A is a half automatic and intelligent Vickers hardness testing machine, it adopts the close-loop force sensor to replace the traditional quality weight, this innovative design makes the instrument more accurate.
YL-HV-10M/10P/10A selection of testing force and dwell time is controlled and monitored on the front panel, it is automatic during the process of loading, dwell and unloading.
YL-HV-10M/10P/10A adopts digital microscopes with adjustable LED illuminator, doesn’t need the operator to read the detail length of indentation, it only needs the operator to aim the D1, D2 diagonal of indentation and press the length key twice, then the built-in processor can compute the Vickers value and display the final testing result on LCD display automatically.
YL-HV-10M/10P/10A doesn’t need the operator to read the diagonal of indentation and check the Vickers testing table again, it improves the speed and accuracy of Vickers hardness testing obviously.
Specifications
| Product Name | 10Kg Digital Vickers Hardness Tester | |||
| Model | YL-HV-10M | YL-HV-10P | YL-HV-10A | |
| Difference | Turret | Manual | Manual | Auto |
| Mini-Printer | Without | Mini-Printer | Mini-Printer | |
| Hardness Conversion | Without | Without | Without | |
| Testing Force | Kgf | 0.3, 0.5, 1, 2, 2.5, 3, 5 | ||
| N | 2.94, 4.9, 9.8, 19.6, 24.5, 29.4, 49.0 | |||
| Testing Range | 8HV~2900HV | |||
| Loading Control | Automatic (Loading, Dwell, Unloading) | |||
| Magnification of Microscope | Observation:20x/40x; Measurement:20x/40x | |||
| Digital Eyepiece | Magnification:10x | |||
| Dwell Time | Adjustable 0~60s | |||
| Hardness Indication | 1HV/LCD Display | |||
| Illumination | Adjustable LED | |||
| Max. Height of Specimen | 170mm | |||
| Instrument Throat | 135mm | |||
| Power Supply | AC220V/50Hz;110V/60Hz | |||
| Dimension(LxWxH) | 535 x225 x580mm | |||
| Packing Dimension | 630 x460 x710mm | |||
| Gross/Net Weight | 50Kg/40Kg | |||
| Execution Standard | ISO 6507，ASTM E92，JIS Z2244，GB/T4340 |
Standard Delivery
| Standard Delivery | Standard Delivery | Standard Delivery |
| Indenter | YL-HV 1 Hardness Block | Accessories Box |
| 20x Objective | HV 5 Hardness Block | Anti-dust Cover |
| 40x Objective | Analogue X-Y Anvil | Level Screw |
| 10x Digital Eyepiece | Power Cable | Instrument Manual |
Optional Accessories
| Optional Accessories | Optional Accessories | Optional Accessories |
| 25mm Digital Micrometer Head | Video Measuring Camera | USB Camera USB-V1 |
| 15x Digital Eyepiece | 1.5x CCD Adapter | Measuring Software |
| LCD Video Monitor | V-Shape Anvil | Unequal Specimen Clamp |
