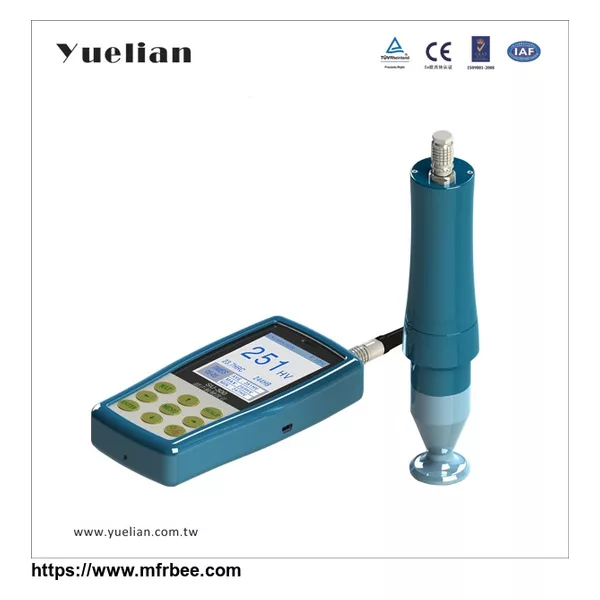

Ultrasonic Hardness Tester YU-300M
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- China (Mainland)
- Loading Force
- 2Kgf(Optional: 1Kgf, 5Kgf, 10Kgf)
- Indenter
- 136°Vickers Diamond Indenter
- Measuring Direction
- Support 360°
- Packaging
- 1 set each plywood case
- Delivery
- 30 Days
Specifications
Introduction
l At present, there are kinds of methods for hardness measurement, commonly used like Brinell, Rockwell, Vickers, Leeb,etc. while the disadvantages are obvious for the above
hardness measurement .Rockwell and Brinell with heavy loading force and big indentation, lead to serious destruction on sample surface.
l Vickers apply optical measurement, but only professional technicians can operate smoothly, impossible to measure hardness of heavy work piece, installed machinery
and permanently assembled parts.
l Leeb hardness tester apply rebound and indirect method to measure hardness,
easily lead to big deviation when convert to Birnell, Rockwell and Vickers scales.
l Ultrasonic hardness tester
YU-300M apply ultrasonic contact impedance method to do comparative hardness measurement for testing pieces, with advantages of high accuracy, efficiency, portable and easy
operation.
Specifications:
| Product Name | Ultrasonic Hardness Tester |
| Model | YU-300M |
| Loading Force | 2Kgf(Optional: 1Kgf, 5Kgf, 10Kgf) |
| Measuring Range |
HB: 85-650;HV 80-1599; HRC 20-70;HRB: 41-100; HRA: 61-85.6
HS: 34.2-97.3;Mpa: 255-2180N/mm |
| Measuring Accuracy | HV:±3%HV; HRC:±1.5HRC; HB:±3%HB |
| Indenter | 136°Vickers Diamond Indenter |
| Measuring Direction | Support 360° |
| Data Storage | To save 1000-groups of measuring data and 20-groups of calibration data |
| Hardness Scale | HV,HB,HRC,HRA,HRB,MPa |
| Data display | Loading force, Testing-times, Testing result, Average, Maximum,Minimum,Deviation and Conversion scale. |
| Hardness Indication | LCD display |
| Operating Environment | Temperature:-10℃~50℃; Humidity: 30%~80%R.H |
| Operating Voltage | DC 4.8V |
| Instrument Dimensions | 160x80x31mm |
| Net Weight | Approximate 500g（Without probe） |
