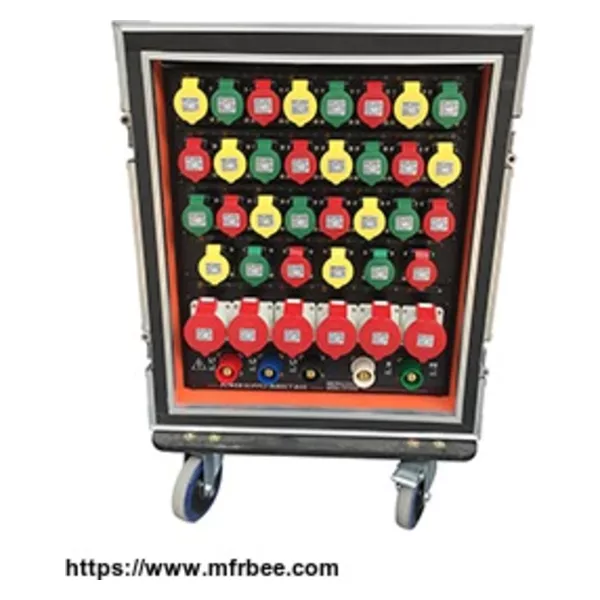

48channel power distribution

FOB Price
USD $600.00 / Piece
Place Of Origin
China (Mainland)
Minimum Order
1
Packaging
1pc flight case
Delivery
15 Days

Description
KoinStage customized Three-phase five wire24 channelsXXX.
Equipment housed in a plywood flight case enclosure,with recessed Socket and
Switchgear panels for mechanical protection.24 channels has separately by24 pcs16A 3pin socket and 3 pcs 10A universal socket, it can protect the power case very good.400A connector, there are
yellow/green/red/blue/black color.Equipment has a main switch and separate switch,protect overload and short circuit.
This type ofXXX Applicable to event lighting Audio/Video and Led wall applications.

Specification

Flight Case 13U,14inch wheel,fireproofing,quakeproof,LED lighting at the top inside
Input 400A camlock,3 phase 5wire(5 colors),63A 5pin socketAC380Vinput AC220Voutput
Output 24 channels 16A 3pin socket and 10A universal socketwith indicator light
Breaker main breaker, air switch (Delixi)
Meter ampere and voltage meter
Wire copper busbar main wire, inflaming retarding,terminal fixed with Screw glue
Plug with 400A camlock plug, 16A 3pin plugs,63A 5pin plugs
Working Temperature 0℃-45℃
relative humidity +40% - +80%
Atmospheric pressure 0.8-1.6
Working environment well-ventilated, non smoke dust
Weight 85Kg
