5U 12channel power distribution
Product Quick Detail
- FOB Price
- USD $450.00 / Piece
- Place Of Origin
- China (Mainland)
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Description

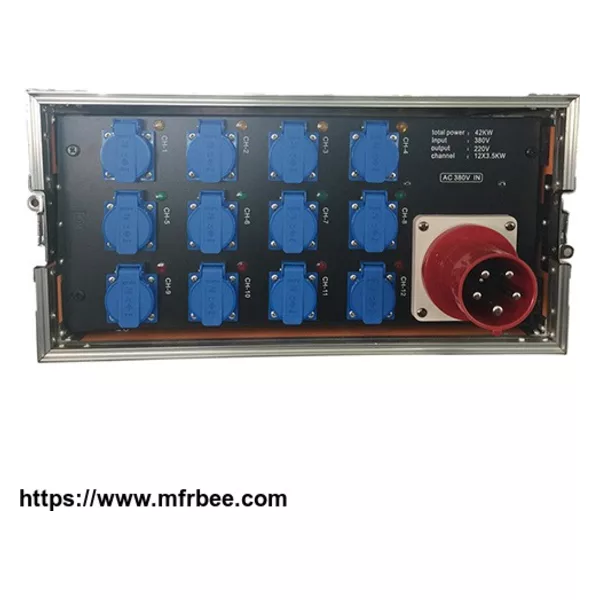

KoinStage customized Three-phase five wire12
channelsXXX.
Equipment housed in a plywood flight case enclosure,with recessed Socket and
Switchgear panels
for mechanical protection.12 channels has separately by12 pcs16AEuropean type socket , it can protect the
power case very good.Equipment has a main switch and separate switch,protect overload and short circuit.
This type ofXXX Applicable to event
lighting Audio/Video and Led wall applications.
Specification
| Flight Case | 5U,fireproofing,quakeproof,LED lighting at the top inside |
| Input | 63A 5pin socketAC380Vinput AC220Voutput |
| Output | 12 channels 16A 3pinEuropean typesocketwith indicator light |
| Breaker | main breaker, air switch (Delixi) |
| Meter | ampere and voltage meter |
| Wire | copper busbar main wire, inflaming retarding,terminal fixed with Screw glue |
| Plug | 16Aeuropean typeplugs,63A 5pin plugs |
| Working Temperature | 0℃-45℃ |
| relative humidity | +40% - +80% |
| Atmospheric pressure | 0.8-1.6 |
| Working environment | well-ventilated, non smoke dust |
| Weight | 20Kg |
