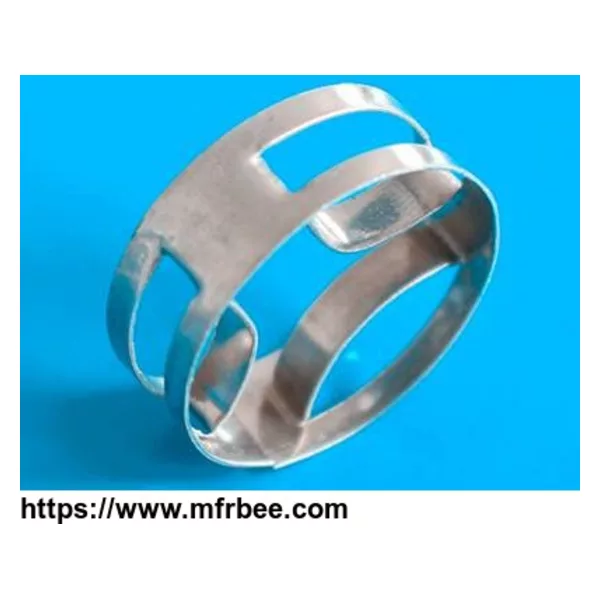

Metal super mini ring, whose height-diameter ratio is about 1/3, is an annular random packing with short body and open-cell design. It has the same structure to the metal cascade mini ring
Model | Nominal diameter (mm) | Diameter × Height × Thickness D × H × δ (mm) | Bulk number (m-3) | Bulk density (kg/m3) | Specific surface area (m2/m3) | Void volume (m3/m3) | Dry packing factor (m-1) |
---|---|---|---|---|---|---|---|
MSMRS-01 | DN 16 | 16 × 5.5 × 0.6 | 378000 | 460 | 348 | 0. 923 | 335 |
MSMRS-02 | DN 25 | 25 × 9 × 0.6 | 155000 | 485 | 228 | 0.936 | 280 |
MSMRS-03 | DN 38 | 38 × 12.7 × 0.8 | 48000 | 437 | 150 | 0. 95 | 175 |
MSMRS-04 | DN 50 | 50 × 17 × 0.8 | 21500 | 346 | 120 | 0. 965 | 156 |
SMRS-05 | DN 76 | 76 × 27 × 1.0 | 5800 | 264 | 70 | 0. 985 | 90.2 |
Materials: SS 304, SS 316, SS 316L, carbon steel, aluminum alloy. |
Features
Application
Because of its thin wall, large flux, excellent separating effect and other advantages, metal super mini ring is especially an ideal choice for handling media which are heat-sensitive, easy to decompose, easy to polymerize and easy to carbonize.
Package
Packaged in carton boxes, woven bags & jumbo bags.
