General Palisade Fencing
Product Quick Detail
- FOB Price
- USD $500.00 / Piece
- Minimum Order
- 1
- Place Of Origin
- china
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
General Palisade Fencing for Common Security Requirements
Anti-climb palisade fencing
Palisade fencing is widely recognized security fencing effectively protecting assets & personal for schools, companies, governments and other places where will be threatened by intruders or thefts. To satisfy with different requirements of protection, steel palisade fencing is divided into general purpose and high security purpose. In this page, general purpose palisade fencing is the main talk. Please go to high security palisade fencing
General palisade fencing is often found in school, residential or commercial places where high security is not so urgently needed. However, it is not as security as high security fencing, it still shares some priorities compared with common chain link fencing or weld fences. For example, general palisade fencing is suitable for slopes up to 1 in 3, easy installation and long-term service time. It is popularly used in UK, South Africa, Canada and other regions.
| Item | Fence height above ground (m) | Posts | Horizontal rails (rolled steel angle section) (mm) | Pales | ||
|---|---|---|---|---|---|---|
| Rolled steel joist section (mm) | Embedded length (mm) | Angle (mm) | Corrugated sheet thickness (mm) | |||
| GP15 | 1.50 | 102 × 44 | 525 | 40 × 40 × 6 | 40 × 40 × 5 | See Table 2 |
| GP18 | 1.80 | 102 × 44 | 525 | 40 × 40 × 6 | 40 × 40 × 5 | |
| GP21 | 2.10 | 102 × 44 | 625 | 45 × 45 × 6 | 40 × 40 × 5 | |
| GP24 | 2.40 | 102 × 44 | 725 | 45 × 45 × 6 | 40 × 40 × 5 |
Standard pale head styles:
Popular palisade pale head styles
Palisade fencing - angle pale head styles
Note: palisade fencing made by steel angle is very popularly found in South Africa like Durban. You can find more head types of angle palisade fencing in palisade fencing for South Africa
| Pale profile | Thickness (mm) |
|---|---|
| Angle | 5 |
| Corrugated "W" section | 2.5 |
| Corrugated "D" section | 3.0 |
General palisade fencing pale sections
Palisade fencing description:
- Item: steel palisade fencing for general purpose.
- Standard: BS 1722-12:1999.
- Surface Treatment: galvanised or galvanised & powder coated.
- Material: cold rolled corrugated "D" & "W" Section, or hot rolled steel angle.
- Fencing Height: 1.50, 1.80, 2.10 & 2.40m.
- Length: 2.75m/unit.
- Post: rolled steel joist - 102 × 44mm.
- Color: black, white, green or as required.
- Gate: single or pair.
- Accessories: bolts or rivets supplied together.
Note: palisade fencing here provided is manufactured by BS 1722-12:1999. Other dimensions and head styles are bespoken according to your order. Besides, palisade fencing is sold by unit including palisade fencing, post

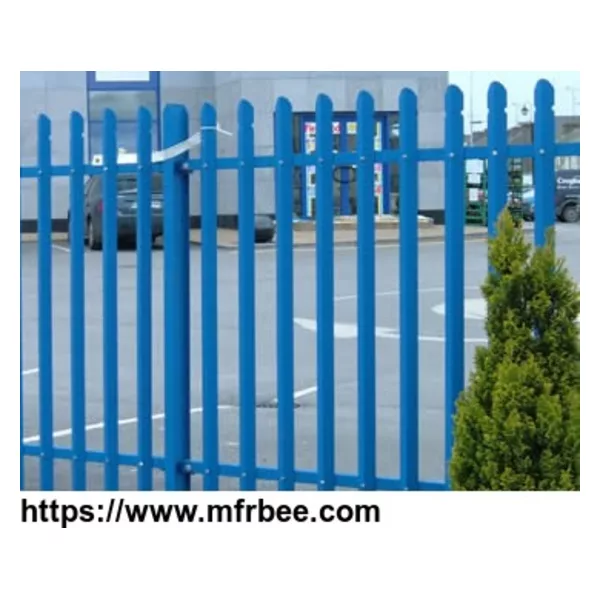

Commercial palisade fencing - blue powder coating
Green powder coated palisade fencing installed on the wall in a residential area
