CW6200 Water Chiller Units For 45KW CNC Spindle

CW6200 Water Chiller Units For 45KW CNC Spindle

CW6200 Water Chiller units can professionally cool the spindles of CNC equipment below 45KW. The main accessories of cw 6200 chiller with a cooling capacity of 5100W are all cooperated with world-renowned brands to meet the high-precision cooling needs of different users in various industries. CW6200 continuously optimizes performance, adopts the top high-speed fan design that is most conducive to heat dissipation, is equipped with stainless steel multi-stage centrifugal pumps, has multiple alarm protection functions and aviation signal output terminals.

Advantage Of CW6200 Water Chiller Units For 45KW CNC Spindle

The cooling capacity is 5200W, and environmentally friendly refrigerant is selected.

The temperature control accuracy is ±0.5℃.

It adopts internationally renowned compressors and the condenser adopts copper pipes imported from abroad, which can efficiently refrigerate.

Intelligent thermostat, multiple settings and fault prompt functions, easy to operate.

Specification Of CW6200 Laser Water Chiller Units For 45KW CNC Spindle

Model CW-6200AH CW-6200BH CW-6200AI CW-6200BI CW-6200AN CW-6200BN

Voltage 220V 220V 220V 220V 220V 220V

Frequency 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz

Current 1~8.2A 1~8A 1.5~8.7A 1.5~8.5A 2~9.2A 2~9A

Compressor power 1.68KW 1.645KW 1.68KW 1.645KW 1.68KW 1.645KW

2.28HP 2.24HP 2.28HP 2.24HP 2.28HP 2.24HP

Refrigeration capacity 17510Btu/h 17640Btu/h 17510Btu/h 17640Btu/h 17510Btu/h 17640Btu/h

5.13KW 5.17KW 5.13KW 5.17KW 5.13KW 5.17KW

4420Kcal/h 4446Kcal/h 4420Kcal/h 4446Kcal/h 4420Kcal/h 4446Kcal/h

Refrigerant R-22/R-410a

Refrigerant charge 1100g 1200g 1100g 1200g 1100g 1200g

Precision ±0.5 °C

Reducer Capillary

Protection Overcurrent protection for compressor, flow alarm, over-temperature alarm

Pump power 0.05KW 0.1KW 0.37~0.75KW

Tank capacity 15L

Inlet and outlet Rp1/2"

Max. lift 12M 25M 28~53M

Max. flow 13L/min 16L/min 70L/min

N.W 69Kgs 82Kgs

G.W 79Kgs 92Kgs

Dimension 67 X 47 X 89 cm(L X W X H)

Package dimension 74 X 60 X 109 cm(L X W X H)

Application Of CW6200 Water Chiller Units For 45KW CNC Spindle

Can professionally cool the spindles of CNC equipment below 45KW.

More Details Of CW6200 Water Chiller Units For 45KW CNC Spindle

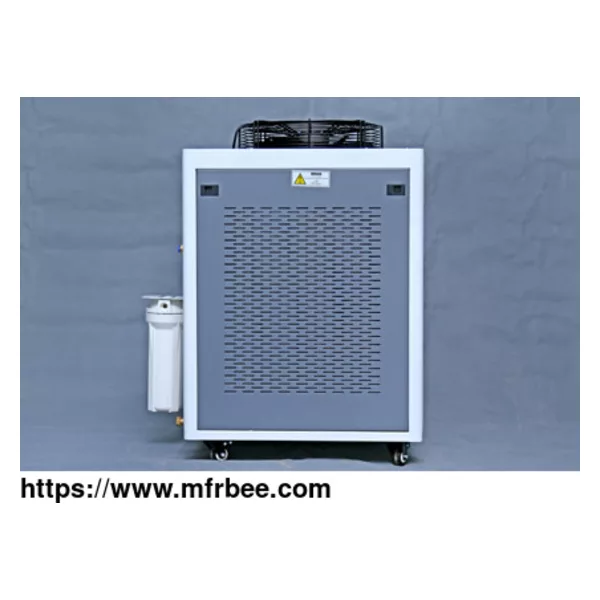

Dense Heat Dissipation Holes To Maximize Heat Dissipation Effect

The Internal Radiator Adopts High-density Copper Tube, Which Has Better Heat Exchange Effect

Use Ultra-quiet Large Wind Fan For Better Heat Dissipation

Now the industrial water cooler price is affordable, if you have needs, please contact us.
