Onumen Smart Plus + Automatic System

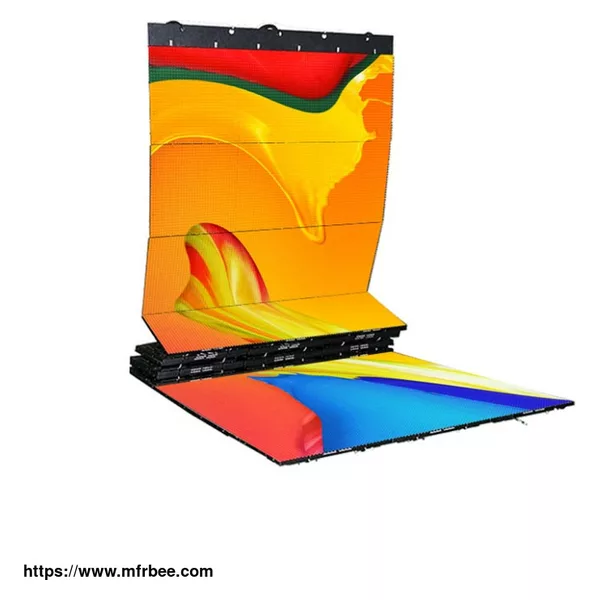

ONUMEN Smart Plus series & automatic system is a creative solution integrating outdoor foldable screen led display and automatic lifting and lowering system.

Smart LED Screen Highlights

Module size: 250mm * 375mm.

360° foldable to realize creative screens.

IP65 rating with waterproof grout for outdoor use.

Automatic folding and unfolding through the motor and tray.

High space efficiency and quick installation.

Prior & post service with no need for maintenance access.

Thin, light and foldable, enabling safety excellence and minimal impact in case of dropping.

Smart LED Display Details

Screen

Application Environment Outdoor

Model Smart plus 5 Smart plus 7 Smart plus 10 Smart plus 15

Pixel Pitch (mm) 5.2 7.8 10.4 15.6

IP Rating IP65 IP65 IP65 IP65

LED Type SMD 1415 SMD 2727 SMD 2727 SMD 2727

Pixel Density (pixel/㎡) 36864 16384 9216 4096

Driving Mode 1/12 1/4 1/4 1/2

Gray Scale (bit) 16 16 16 16

Max Brightness (nits) 5400 5000 5000 5000

Max Refresh Rate (Hz) 5000 8000 8000 8000

Module Resolution (pixels) 48 * 48 32 * 32 24 * 24 16 * 16

Module Size (mm) 250 * 375 250 * 375 250 * 375 250 * 375

Screen Thickness (mm) 15 16.5 16.5 16.5

Weight (kg/㎡) 12 12 12 12

Folding Angle 360° 360° 360° 360°

Viewing Angle (H/V) 120° / 120° 120° / 120° 120° / 120° 120° / 120°

Max Power Consumption (w/㎡) 830 650 560 560

Output Voltage (V) DC24/48 DC24 DC24 DC24

Input Voltage (V) AC100 ~ AC240 AC100 ~ AC240 AC100 ~ AC240 AC100 ~ AC240

Max Height of a Panel (m) 8 12 16 24

Best Viewing Distance (m) ≥5 ≥8 ≥10 ≥15

Brightness adjustment (levels) (digital) 256 256 256 256

Brightness adjustment (levels) (analog current) (option) 64-256 64-256 64-256 64-256

Contrast 2500:01:00 2500:01:00 2500:01:00 2500:01:00

Connection Type (standard) (spare) 2+14pin Soldering 2+14pin Soldering 2+14pin Soldering 2+14pin Soldering

CS120 Connector CS120 Connector CS120 Connector CS120 Connector

Short Circuit Protection Yes Yes Yes Yes

Quick Maintenance Yes Yes Yes Yes

Controlling Mode synchronous synchronous synchronous synchronous

asynchronous asynchronous asynchronous asynchronous

Installation Method Hanging Hanging Hanging Hanging

Magnet mounting Magnet mounting Magnet mounting Magnet mounting

Operation temperature (℃) -40 ~ 65 -40 ~ 65 -40 ~ 65 -40 ~ 65

Operation humidity (RH) 0% ~ 90% 0% ~ 90% 0% ~ 90% 0% ~ 90%

Certificate ROHS FCC TUV CE
