Smart Plus Rental Hanging LED Screen

Smart Plus Rental Hanging LED Screen

ONUMEN Smart Plus series outdoor led screen for rent, outdoor rental led displays

High brightness and waterproof for outdoor use.

Enable customers to enjoy the charm of visual creativity outdoors.

Perfect presentation of the "visual Eden" without fear of rain erosion.

Flexible modular design for quick and easy installation, high IP water-proof and dust-proof ratings, allowing free choice of outdoor scenarios.

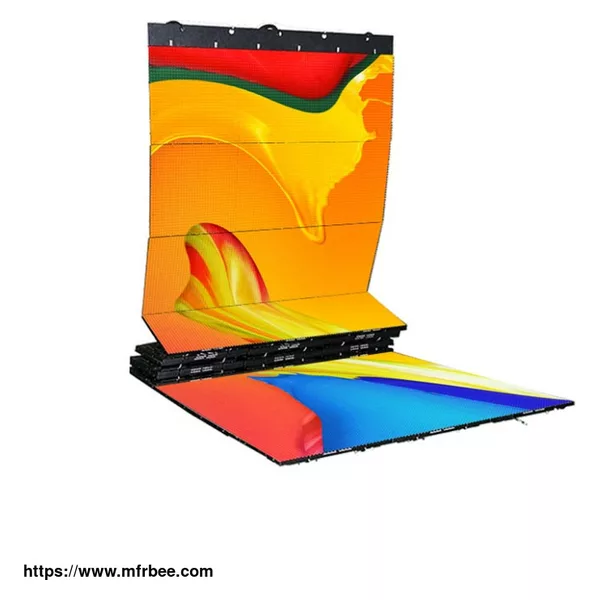

Smart Plus Foldable LED Screen China Highlights

Module size: 250mm * 375mm

360° foldable

High brightness and IP65 rating with waterproof grout for outdoor use

Hanging installation or magnet-based mounting

Discrete power supply

Easy installation without panels, steel structure and fans

Slim and light display for efficient and convenient transportation and installation

Remote control is optional for one-touch automatic lifting and lowering

Details of Smart Plus Rental Hanging Thin LED Screen

Screen

Application Environment Outdoor

Model Smart plus 5 Smart plus 7 Smart plus 10 Smart plus 15

Pixel Pitch (mm) 5.2 7.8 10.4 15.6

IP Rating IP65 IP65 IP65 IP65

LED Type SMD 1415 SMD 2727 SMD 2727 SMD 2727

Pixel Density (pixel/㎡) 36864 16384 9216 4096

Driving Mode 1/12 1/4 1/4 1/2

Gray Scale (bit) 16 16 16 16

Max Brightness (nits) 5400 5000 5000 5000

Max Refresh Rate (Hz) 5000 8000 8000 8000

Module Resolution (pixels) 48 * 48 32 * 32 24 * 24 16 * 16

Module Size (mm) 250 * 375 250 * 375 250 * 375 250 * 375

Screen Thickness (mm) 15 16.5 16.5 16.5

Weight (kg/㎡) 12 12 12 12

Folding Angle 360° 360° 360° 360°

Viewing Angle (H/V) 120° / 120° 120° / 120° 120° / 120° 120° / 120°

Max Power Consumption (w/㎡) 830 650 560 560

Output Voltage (V) DC24/48 DC24 DC24 DC24

Input Voltage (V) AC100 ~ AC240 AC100 ~ AC240 AC100 ~ AC240 AC100 ~ AC240

Max Height of a Panel (m) 8 12 16 24

Best Viewing Distance (m) ≥5 ≥8 ≥10 ≥15

Brightness adjustment (levels) (digital) 256 256 256 256

Brightness adjustment (levels) (analog current) (option) 64-256 64-256 64-256 64-256

Contrast 2500:01:00 2500:01:00 2500:01:00 2500:01:00

Connection Type (standard) (spare) 2+14pin Soldering CS120 Connector 2+14pin Soldering CS120 Connector 2+14pin Soldering CS120Connector 2+14pin Soldering CS120 Connector

Short Circuit Protection Yes Yes Yes Yes

Quick Maintenance Yes Yes Yes Yes

Controlling Mode synchronous synchronous synchronous synchronous

asynchronous asynchronous asynchronous asynchronous

Installation Method Hanging Hanging Hanging Hanging

Magnet mounting Magnet mounting Magnet mounting Magnet mounting

Operation temperature (℃) -40 ~ 65 -40 ~ 65 -40 ~ 65 -40 ~ 65

Operation humidity (RH) 0% ~ 90% 0% ~ 90% 0% ~ 90% 0% ~ 90%

Certificate ROHS FCC TUV CE
