Smart Rental Hanging LED Screen

Smart Rental Hanging LED Screen

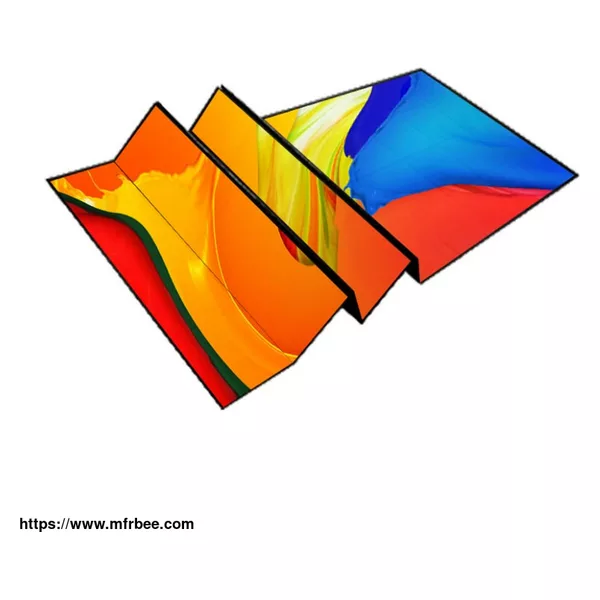

ONUMEN Smart series foldable hanging indoor rental led screen

Thin and light for easy installation.

Unprecedented flexibility, efficiency and visual performance.

Ultra-slim and foldable for time-and-labor-saving installation.

The indoor rental led display takes only 1 hour for 2 people to install a 100 m² screen.

Creative indoor rental led screens are easily available for a more desirable viewing experience.

Smart Rental Hanging LED Screen Highlights

Module size: 250mm * 250mm.

360° foldable, hanging installation.

For indoor use IP43 rating.

It has eliminated the disadvantages of conventional LED panels such as large thickness, heaviness and limitation in appearance.

It reduces the cost of installation, transportation, storage, labor, etc.

It reduced occupied floor and space.

Remote control is optional for one-touch automatic lifting and lowering.

Details of Smart Foldable LED Screen China

Screen

Application Environment Indoor

Model Smart 3 Smart 5 Smart 7

Pixel Pitch (mm) 3.9 5.2 7.8

IP Rating IP43 IP43 IP43

LED Type SMD 1010 SMD 2020 SMD 1921

Pixel Density ( pixel/㎡) 65536 36864 16384

Driving Mode 1/16 1/12 1/16

Gray Scale (bit) 16 16 16

Max Brightness (nits) 1400 1500 1800

Max Refresh Rate (Hz) 4000 5000 4000

Module Resolution (pixels) 64 * 64 48 * 48 32 * 32

Module Size (mm) 250 * 250 250 * 250 250 * 250

Screen Thickness (mm) 14 14 16

Weight (kg/㎡) 12 12 12

Folding Angle 360° 360° 360°

Viewing Angle (H/V) 110° / 110° 120° / 120° 120° / 120°

Max Power Consumption (w/㎡) 900 670 220

Output Voltage (V) DC24/48 DC24/48 DC24/48

Input Voltage (V) AC100 ~ AC240 AC100 ~ AC240 AC100 ~ AC240

Max Height of a Panel（m） 6 8 12

Best Viewing Distance (m) ≥4 ≥5 ≥8

Brightness adjustment (levels) (digital) 256 256 256

Brightness adjustment (levels) (analog current) (option) 64-256 64-256 64-256

Contrast 2500:01:00 2500:01:00 2500:01:00

Connection Type (standard) (spare) 2+14pin Soldering 50pin Connector 2+14pin Soldering 50pin Connector 2+14pin Soldering 50pin Connector

Short Circuit Protection Yes Yes Yes

Quick Maintenance Yes Yes Yes

Controlling Mode synchronous asynchronous synchronous asynchronous synchronous asynchronous

Installation Method Hanging Magnet mounting Hanging Magnet mounting Hanging Magnet mounting

Operation temperature (℃) -40 ~ 65 -40 ~ 65 -40 ~ 65

Operation humidity (RH) 0% ~ 90% 0% ~ 90% 0% ~ 90%

Certificate ROHS FCC TUV CE

As an led screen manufacturer, we will do our best to meet all the needs of customers.
