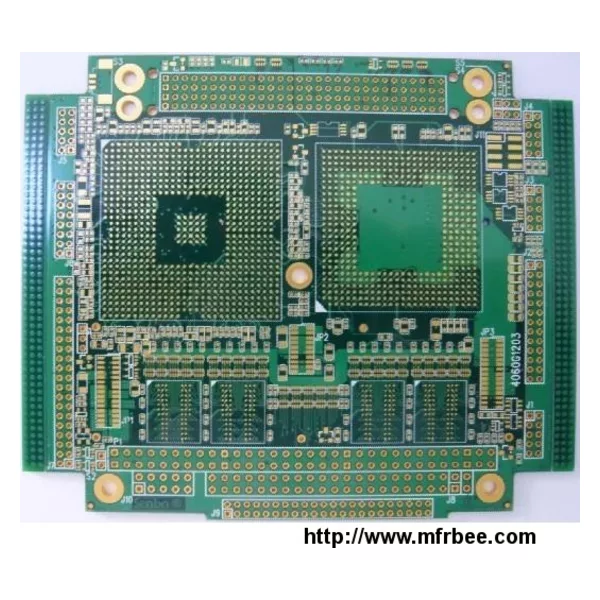

High Quality Lead Free Hasl Pcb
Product Quick Detail
- Place Of Origin
- China (Mainland)
- Packaging
- Packaging Detail: Anti-static bag, bubble pack, carton box,Vacuum...
- Delivery
- 15 Days
Specifications
Flexible Printed Circuit
JESEN specializes in the manufacturing and design of flat flexible cable, rigid flex and flexible circuits. We have a wide range of construction material for the manufacturing of our line of flexible circuits to meet customer application requirements. Our flex circuit products include:
Flexible Printed
Flat Flexible Cable
Rigid Flexible
FPC and FFC have several advantages in many applications:
Tightly assembled electronic packages, where electrical connections are required in 3 axes, such as cameras (static application).
Electrical connections where the assembly is required to flex during its normal use, such as folding cell phones (dynamic application).
Electrical connections between sub-assemblies to replace wire harnesses, which are heavier and bulkier, such as in cars, rockets and satellites.
Electrical connections where board thickness or space constraints are driving factors.
provide the flexible service for OEM & ODM orders
| FPC Production Capabilities | |
| Layers | 1-8layers (soft & hard combined version is 8 layers) |
| Finished Board Thickness | Min.:10x45mm Max.:250x1200mm |
| Available Laminates Material | PI.PET,FR4-PI |
| Finished Board Thickness tolerance | ±0.01mm |
| Finished hole diameter(Min.) | 0.1mm |
| Finished hole diameter(Max) | 0.6mm |
| NPTH Hole diameter tolerance | ±0.025mm |
| PTH hole diameter tolerance | ±0.050mm |
| Copper foil thickness | 12um,18um,35um,70um |
| Circuit width/spacing(Min.) | ≥0.065mm(1/2oz) ≥0.05mm(1/3oz) |
| Surface Finished type | OSP.Gold plating,Immersion Gold,Tin plating(lead free)etc. |
| Gold Flash Ni/Au thickness | Ni:2.54-9um Au:0.025-0.5um |
| Immersion Tin thickness | 0.7-1.2um |
| Tin plating thickness | 3-15um |
| Drill hole position tolerance | ±0.05mm |
| Punching dimension tolerance | ±0.05mm |
| Certificate | ROHS,UL,ISO9001 etc |
- Country: China (Mainland)
- Business Type: Shenzhen jesen industrial Co.,LTD.
- Market:新兴市场
- Founded Year:2010
- Address:RmB26,Fenglin International Business Centre,Jixiang Mid_Rd,Longgang,Shenzhen
- Contact:joe ma
