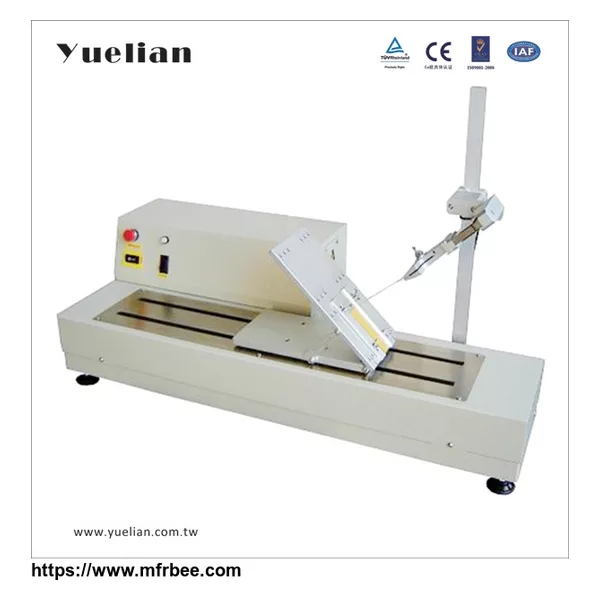

YL-1103A Multi-angle Peel Testing Machine
Product Quick Detail
- FOB Price
- USD $3,000.00 / Piece
- Place Of Origin
- China(Mainland)
- Test Width
- MAX 100mm
- Machine Dimension
- 950*300*300mm (W*D*H)
- Minimum Order
- 1
- Test Stroke
- 600mm
- Test Speed
- 0.1~500mm/min
- Packaging
- 1 set each plywood case
- Delivery
- 30 Days
Specifications
Product Descriptions:
YL-1103A Multi-angle Peel Testing Machine is specially designed for 90°~ 180° peel test,
adopting microcomputer chip control. It is available to do peel force test for materials, with functions of completely computer operating, automatic reset function, connecting to computer to output test pattern and table data as the basis of material test.
Software function:
Test & Control System is designed for PC Electronic Universal Testing Machines, PC Hydraulic Universal Testing Machines and
PC Compression testers; can conduct tensile, compression, bending, shearing, tearing and peeling test; use PC and interface
board for data collection, preservation, processing and printing test result; can calculate max force, yield strength, average
peeling force, max deformation, yield point, elastic modulus and other parameters; can conduct curve graphics processing,
multi-sensor support, video and image interface, flexible data processing, MS-ACCESS database support, making more
powerful function of system.
Specification:
| Capacity | 10N,20N,50N,100N,200N(can select double capacities preparation) |
| Displayer | Computer display mode |
| Force Resolution | 1/250,000 |
| Force Accuracy | ≤±0.5% |
| Stroke Resolution | 0.005mm |
| Control Mode | All computerized operation mode |
| Test Stroke | 600mm |
| Test Width | MAX 100mm |
| Test speed |
0.1~500mm/min, can set by computer, with up & down fast adjustment
button of grips |
| Force Unit Switch | kgf,N,Ibf,g,ton,Mpa |
| Stop Mode |
Overload stop, emergency stop button, specimen damage automatic stop,
upper & lower limit set automatic stop, automatic reset function |
| Machine Dimension | 950 x 300 x 300mm (W×D×H) |
| Machine Drive | Stepper motor drive, synchronous wheel and precision ball screw drive |
| Power | 90W |
| Machine Weight | Approx 35kg |
| Power Supply | 220V 50/60HZ 5A |
| Standard Device | 1 set of grips, computer software, USB computer connection wire |
| Optional | Personal computer |
